Tempered steel, plasma-nitrided and burnished.

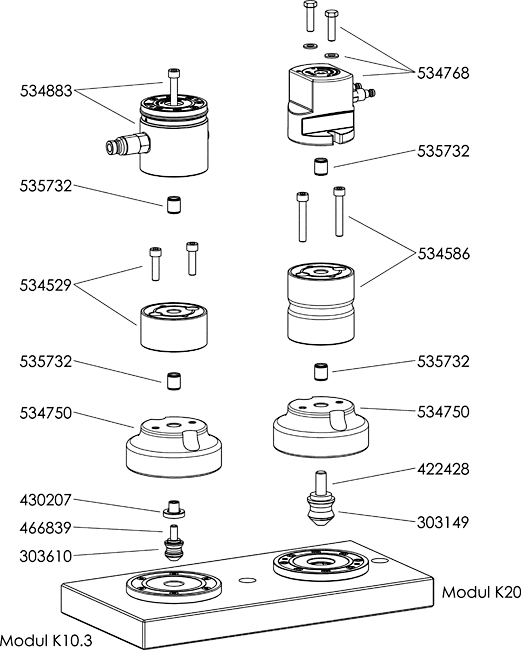

The adapter element is used to reduce the intermediate element size K20 and K10.3 to size K10. Intermediate elements or assembly elements can be adapted.
This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table.
Order numbers for the centering sleeves:
– Ø15: Order no. 535732
– Ø16: Order no. 78006
– Ø22: Order no. 78238
The fastening screws are supplied as standard.
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
| Order No. |
Size | H ±0.01 |
Weight [g] |
|---|---|---|---|
| 532499 | K20 – K10 | 50 | 2892 |
| Order No. |

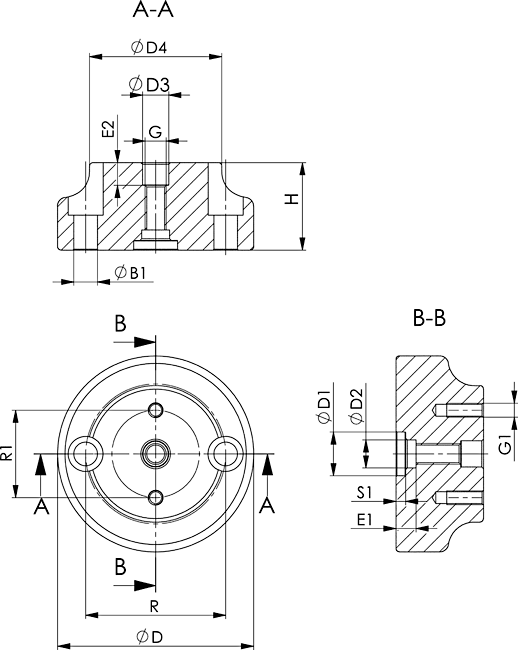

Size | dia. B1 | dia. D | dia. D1 | dia. D2 | dia. D3 | dia. D4 | Screw DIN84 ar ISO4762 |
E1 | E2 | G | G1 | K F6 |
R | R1 | S1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 532499 | K20 – K10 | 13,5 | 112 | 25 | 16 | 15 | 78 | M12x50 | 9 | 13 | M12 | M8 | 8 | 80 | 50 | 5,5 |
