Description
| Order No. |

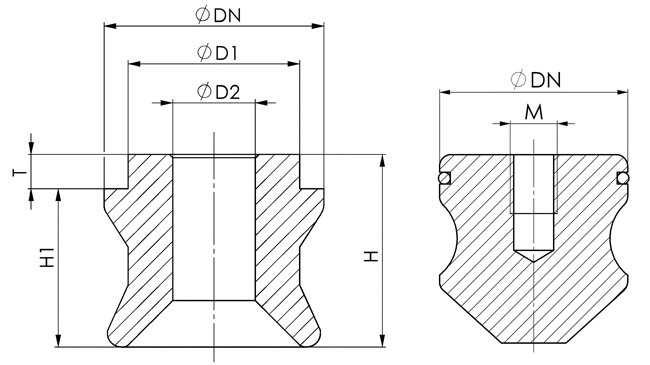

Size | dia. DN | dia. D1 | dia. D2 | H | H1 | M | T | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|
| 554939 | K20 | 32,0 | 25 | 16 | 28 | 23 | – | 5 | 85 |
| 554940 | K20 | 32,0 | 25 | 16 | 28 | 23 | – | 5 | 85 |
| 554941 | K20 | 31,8 | 25 | 16 | 28 | 23 | – | 5 | 85 |
| 303172 | K20 | 31,8 | – | – | – | – | M 8 | – | 110 |

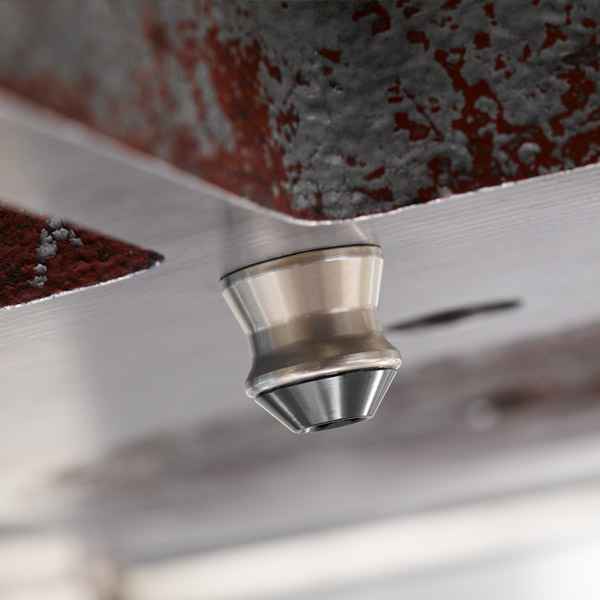

6370ZN-20-2 K20 pull-stud for M16 engagement screw
Hardened, for clamping modules size K20.
Design:

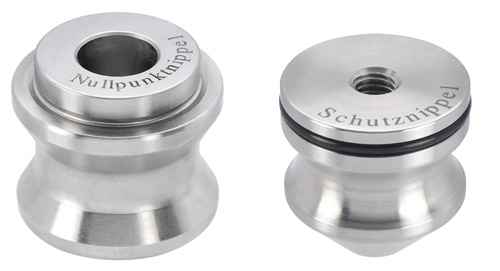

Order no. 554939: zero point pull-stud, order no. 554940: timing pull-stud,
order no. 554941: undersize pull-stud, order no. 303172: protection pull-stud
Note:
The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.
