Description
| Order No. |
Pull-in/locking force up to [kN] |
Holding force [kN] |
Weight [Kg] |
|---|---|---|---|
| 303586 | 30 | 55 | 6,5 |
| Order No. |

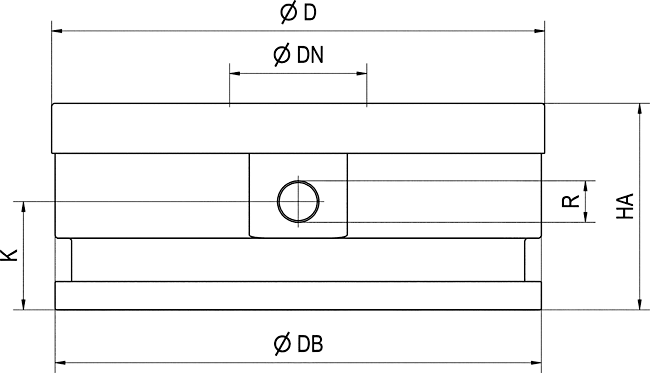

dia. D | dia. DB | dia. DN | HA | K | R |
|---|---|---|---|---|---|---|
| 303586 | 148 | 146 | 40 | 62 | 32,5 | G1/4 |

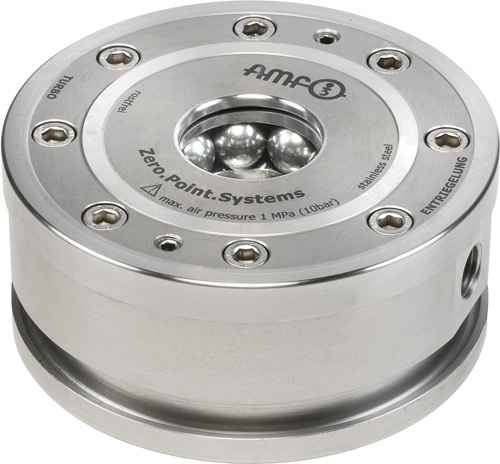

6370AURL Suface-mounted clamping module “Unitool”, round
Pneumatic opening.
Opening operating pressure: min. 8 bar – max. 12 bar
Retensioning operating pressure (turbo): min. 5 bar – max. 6 bar
Cover and piston hardened.
Repeatability < 0.005 mm.
Application:
Zero-point clamping system in combination with hook clamping flange 63707B for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. To achieve the specified pull-in and locking forces, it must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free). Use of the pneumatic pressure booster 6370ZVL is recommended.
The clamping module has two connections:
1x pneum. opening (1) / 1x pneum. retensioning (turbo) (2).
Use “Unitool” modules exclusively with “Unitool” modules in one clamping.
* Please observe the installation instructions.
On request:
– Installation diagrams
