Description
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Weight [g] |
|---|---|---|---|---|
| 306175 | K 5 | 1,5 | 13 | 300 |
| Order No. |

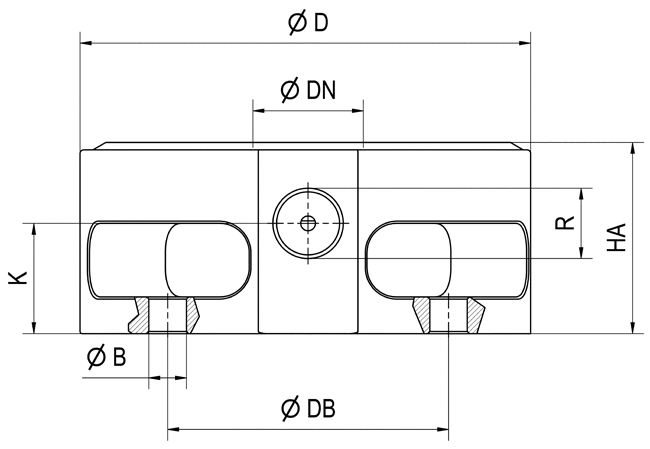

Size | dia. B | dia. D | dia. DB | dia. DN | HA | K | R |
|---|---|---|---|---|---|---|---|---|
| 306175 | K 5 | 5,8 | 62 | 54 | 15 | 26 | 15 | G1/8 |
6370AARL Surface-mounted clamping module, round
Pneumatic opening.
Opening operating pressure: min. 8 bar – max. 12 bar
Retensioning operating pressure (turbo): min. 5 bar – max. 6 bar
Cover and piston hardened.
Repeatability < 0.005 mm.
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. To achieve the specified pull-in and locking forces, it must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The contact surface is the upper surface of the housing.
Use of the pneumatic pressure booster 6370ZVL is recommended.
The clamping module has two connections:
1x pneum. opening (1) / 1x pneum. retensioning (turbo) (2).
* Please observe the installation instructions.
On request:
– Individual housing
