Description
| Order no. |
Length [m] |
Weight [g] |
|---|---|---|
| 430082 | 2 | 730 |
6370ZS-06-2000 Hose set, hydraulic
Max. operating pressure 100 bar.
Design:

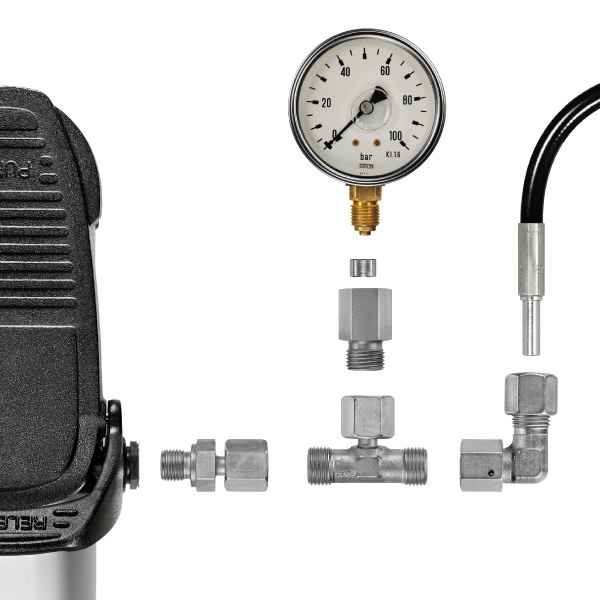

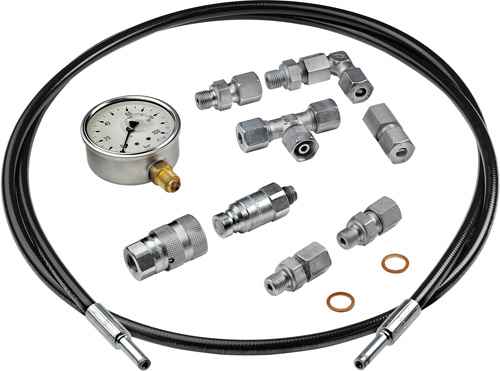

The connection set includes:
1x hydraulic connecting tube, length 2 m
2x straight screw pipe connections
2x straight screwed sockets
1x T-screw connection
1x manometer 0-100 bar
1x straight female stud coupling
2x quick fitting coupling sleeves
2x quick fitting coupling plugs
2x Cu sealing washers for G1/4
Application:
This set is used for the hydraulic connection of extension clamping modules or clamping stations for pressure generators such as pressure boosters or air-hydraulic pumps.
