Description
| Order No. |

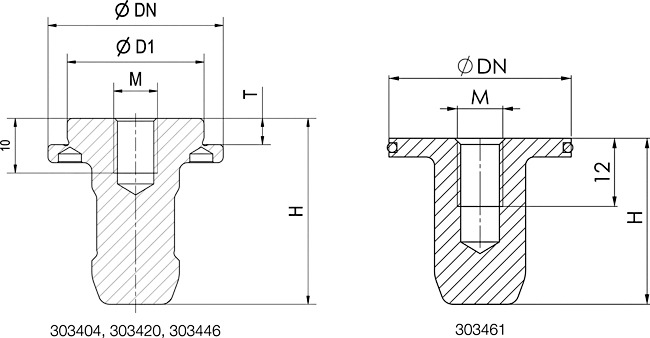

Size | dia. DN | dia. D1 | H | M | T | Weight [g] |
|---|---|---|---|---|---|---|---|
| 303404 | 1000 | 32 | 25 | 34,0 | M8 | 4,8 | 70 |
| 303420 | 1000 | 32 | 25 | 34,0 | M8 | 4,8 | 70 |
| 303446 | 1000 | 32 | 25 | 34,0 | M8 | 4,8 | 70 |
| 303461 | 1000 | 32 | – | 29,2 | M8 | 12,0 | 55 |

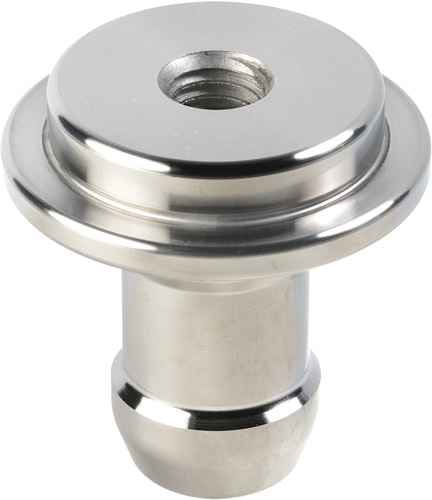

6370ZNG-10 Pull-stud “Gonzales 1000”
Hardened.
Pull-stud can also be used in the modules Speedy 1000 and DockLock 1000.
Design:
Order no. 303404: zero point pull-stud
order no. 303420: timing pull-stud
order no. 303446: undersize pull-stud
order no. 303461: protection pull-stud
Note:

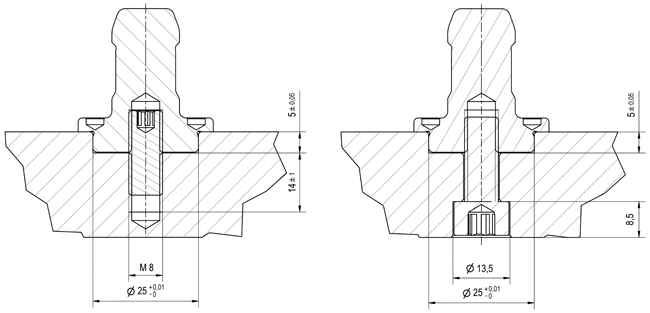

Tightening torque of the clamping nipple max. 20 Nm. Min. screw grade 8.8.
