Hydraulic unlocking.
Opening operating pressure: min. 50 bar – max. 60 bar.
Clamping modules’ contact surface: Steel, stainless and hardened.
Base plate: Steel, unhardened.
Repetition accuracy < 0.005 mm.
On request, we can incorporate fastening bores in the base plate according to your requirements.
The correct quick-release coupling is available under the order no.:
– 427872 for sleeve
– 427856 for plug
* Please observe the installation instructions.
Other dimensions, insertion dimensions and number of clamping nipples equipped.
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Weight [Kg] |
|---|---|---|---|---|
| 426726 | K10 | 2 x 10 | 2 x 25 | 7,5 |
| 303289 | K20 | 2 x 20 | 2 x 55 | 22,9 |
| 303297 | K40 | 2 x 40 | 2 x 105 | 59,8 |
| Order No. |

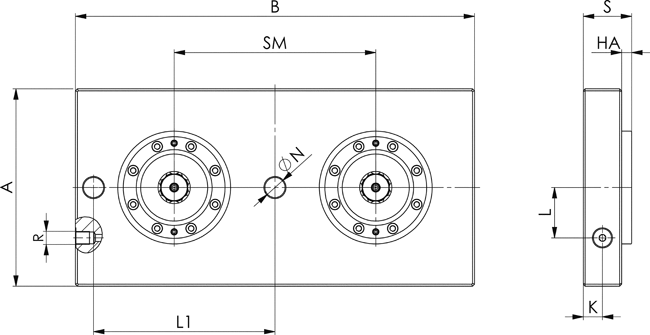

Size | A | B | HA | K | L | L1 | dia. N | R | S | SM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 426726 | K10 | 146 | 240 | 7 | 15 | 35 | 100 | 20 | G1/4 | 33 | 100 |
| 303289 | K20 | 196 | 396 | 10 | 19 | 50 | 180 | 20 | G1/4 | 48 | 200 |
| 303297 | K40 | 296 | 546 | 15 | 24 | 65 | 250 | 25 | G1/4 | 62 | 320 |
