Pneumatic opening.
Pneumatic blow-out.
Opening operating pressure: min. 8 bar – max. 12 bar
Retensioning operating pressure (turbo): min. 5 bar – max. 6 bar
Cover and piston hardened.
Repeatability < 0.005 mm.

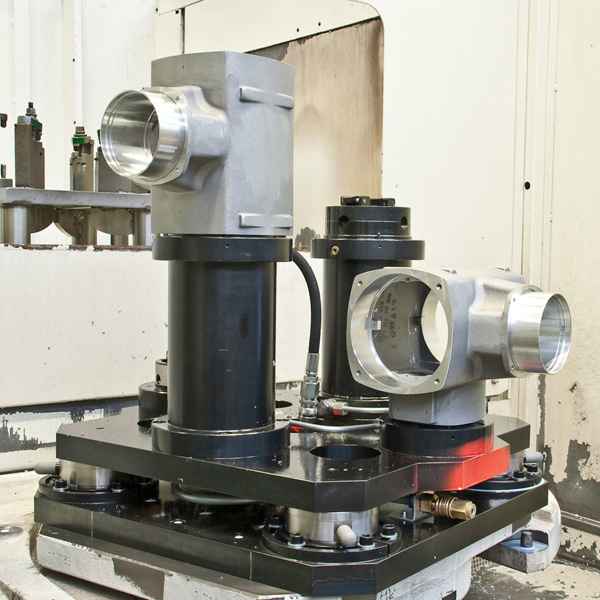

Zero-point clamping system in combination with hook clamping flange 63707B for set-up-time-optimised clamping during cutting and non-cutting machining.
The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. To achieve the specified pull-in and locking forces, it must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
Use of the pneumatic pressure booster 6370ZVL is recommended.
The clamping module with blow-out and support control has three connections:
1x pneum. opening (1) / 1x pneum. retensioning (turbo) (2), 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
– Individual housing
| Order No. |
Size | Pull=in/locking force up to [kN] |
Holding force [kN] |
Blow out | Weight [Kg] |
|---|---|---|---|---|---|
| 305193 | K10 | 8 | 25 | ● | 0,9 |
| 302851 | K20 | 17 | 55 | ● | 2,6 |
| 302893 | K40 | 30 | 105 | ● | 6,6 |

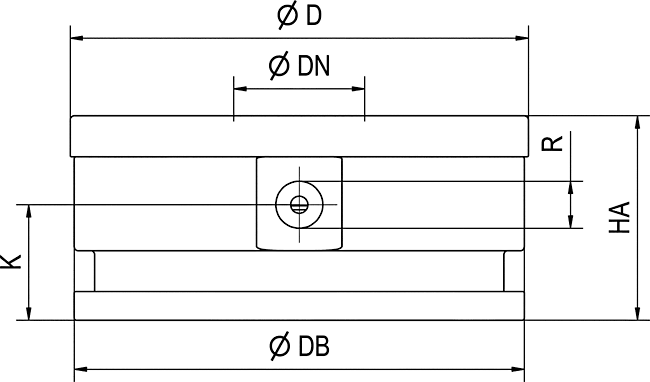

| Order No. |
Size | dia. D | dia. DB | dia. DN | HA | K | R |
|---|---|---|---|---|---|---|---|
| 305193 | K10 | 78 | 77,5 | 22 | 32 | 16,50 | G1/8 |
| 302851 | K20 | 112 | 110,0 | 32 | 50 | 28,25 | G1/4 |
| 302893 | K40 | 148 | 146,0 | 40 | 62 | 32,50 | G1/4 |
