Description
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Weight [Kg] |
|---|---|---|---|---|
| 303503 | K10 | 1,3 | 25 | 2,5 |
| Order No. |

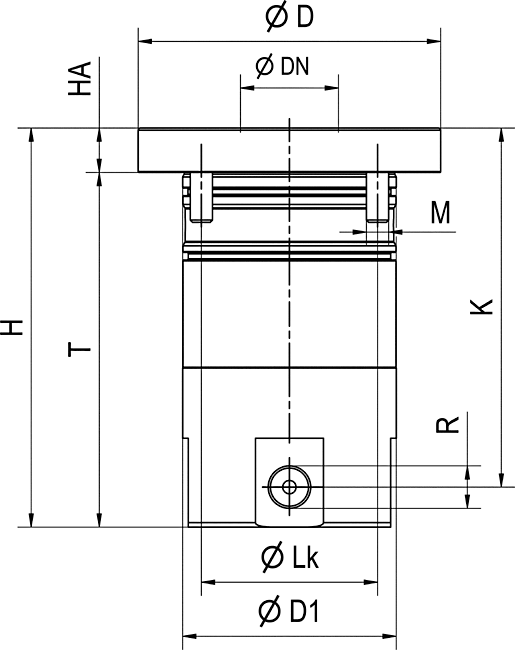

Size | dia. D | dia. DN | dia. D1 | H | HA | K | dia. LK | M | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 303503 | K10 | 68 | 22 | 48 | 90 | 10 | 81 | 4×56 | M6 | G1/8 | 80 |
6370KARH Compact cylinder
Hydraulic opening.
Opening operating pressure: min. 50 bar – max. 60 bar
Cover and piston hardened.
Repeatability < 0.005 mm.
Application:
For retrofitting to modular profiles, columns, tombstones and cubes. Can be used with thin wall sections.
Note:
There are 5 standard connection options. 4 connections are installed laterally on the outside surface at a 90° angle. Connection is also possible in the base of the compact cylinder.
* Please observe the installation instructions.
On request:
– Installation diagrams
