Hydraulic opening.
Pneumatic blow-out.
Opening operating pressure: min. 50 bar – max. 60 bar
Cover and piston hardened.
Repeatability < 0.005 mm.

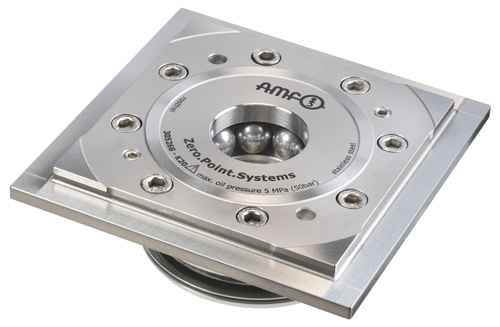

Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining. A square clamping module prevents the pallet from twisting. The indexing function enables exact positioning every 90°.
The installation clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module with blow-out and support control has two connections: 1x hydr. opening (1) / 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
– Installation diagrams
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Blow out | Weight [Kg] |
|---|---|---|---|---|---|
| 305250 | K10 | 10 | 25 | ● | 0,55 |
| 305276 | K20 | 20 | 55 | ● | 1,70 |
| 305292 | K40 | 40 | 105 | ● | 3,55 |

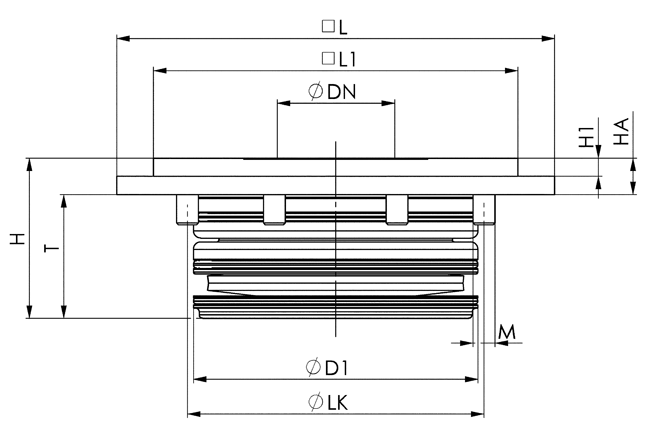

| Order No. |
Size | dia. DN | dia. D1 | H | HA | H1 | L | L1 | dia. LK | M | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 305250 | K10 | 22 | 50 | 30 | 7 | 3,5 | 85 | 70 | 60 | M5 | 23 |
| 305276 | K20 | 32 | 78 | 44 | 10 | 5,0 | 120 | 100 | 88 | M6 | 34 |
| 305292 | K40 | 40 | 102 | 57 | 15 | 5,0 | 150 | 130 | 118 | M8 | 42 |
