Description
| Order No. |

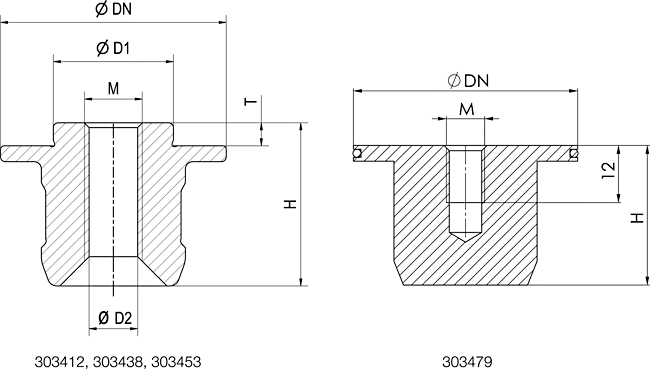

Size | dia. DN | dia. D1 | dia. D2 | H | M | T | Weight [g] |
|---|---|---|---|---|---|---|---|---|
| 303412 | 2000 | 47 | 25 | 10,8 | 34,0 | M12 | 4,8 | 170 |
| 303438 | 2000 | 47 | 25 | 10,8 | 34,0 | M12 | 4,8 | 170 |
| 303453 | 2000 | 47 | 25 | 10,8 | 34,0 | M12 | 4,8 | 170 |
| 303479 | 2000 | 47 | – | – | 29,2 | M 8 | 12,0 | 180 |

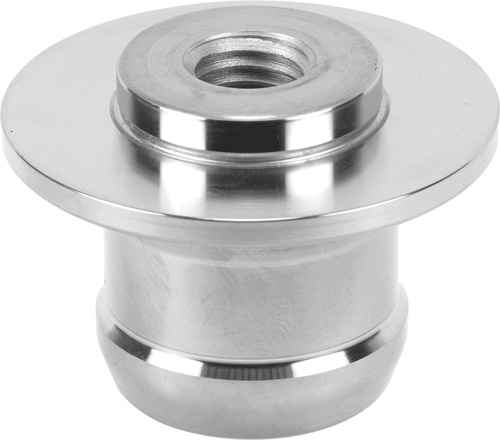

6370ZNG-20 Pull-stud “Gonzales 2000”
Hardened.
Pull-stud can also be used in Speedy 2000.

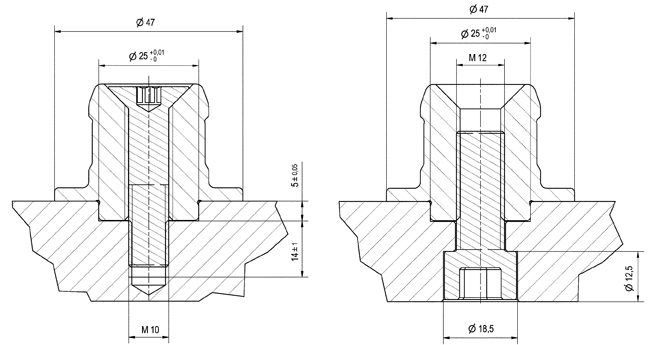

Design:
Order no. 303412: zero point pull-stud
order no. 303438: timing pull-stud
order no. 303453: undersize pull-stud
order no. 303479: protection pull-stud
Note:
Tightening torque of the pull-stud max. 20 Nm. Screw grade min. 8.8.
