Description
| Order No |

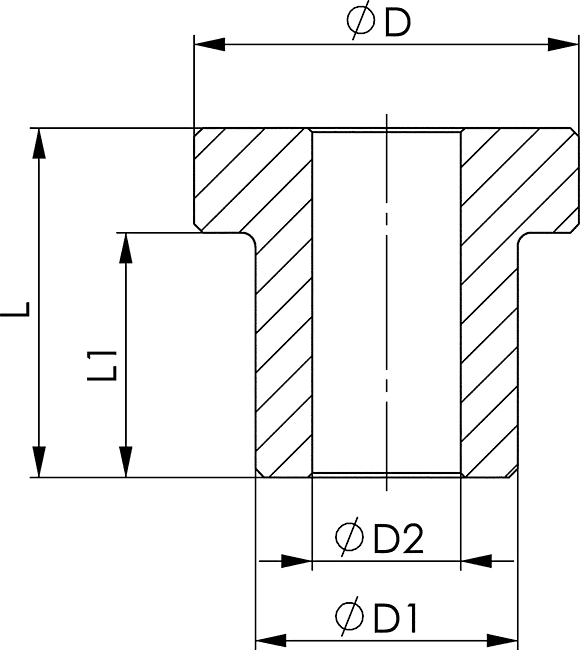

dia. D | dia. D1 | dia. D2 | L | L1 | Weight [g] |
|---|---|---|---|---|---|---|
| 550198 | 22 | 15 | 8,5 | 20 | 14 | 28 |
| 550197 | 32 | 16 | 12,5 | 18 | 11 | 44 |
6210-XX Centring pin
Application:

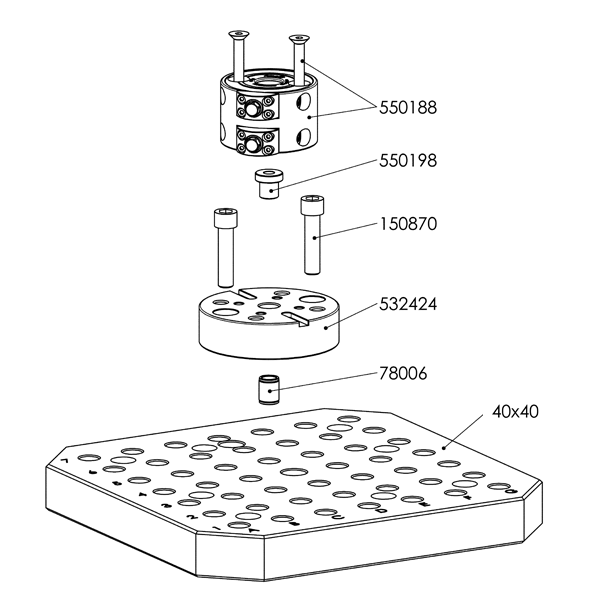

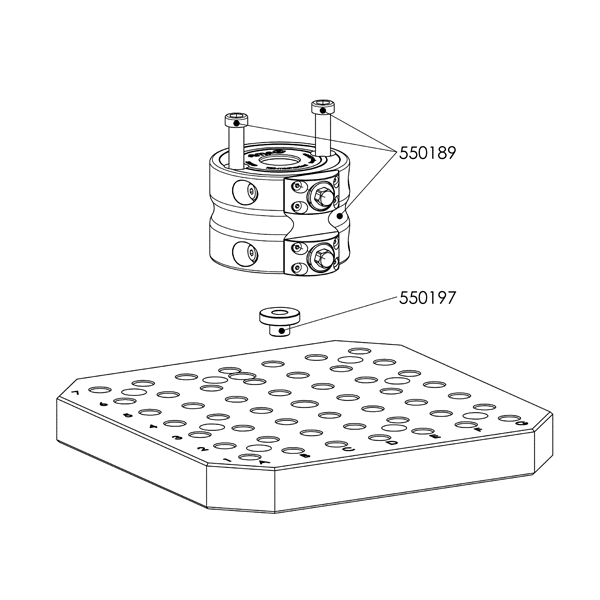

To position the double clamping modules on a clamping plate with clearance holes or a foot element from the “Modular height adapter” AMF clamping system.
Note:
The centring pin is used when the double clamping module is not yet positioned with a pull-stud for T-slot and can be clamped.
Advantage:
Highly-precise positioning of the double clamping module.
