Pneumatic unlocking.
Opening operating pressure:
K10.3 min. 5 bar
K20.3 min. 4.5 bar
Steel, unhardened.
Repeat accuracy <0.005 mm.
Pneumatic clamping station for setting time-optimised clamping on machine tables with groove spacing of 63, 100 and 125 mm. Fastening is via M12 socket head screws. At least two fitting bores are attached for alignment. The insertion dimension of the clamping modules is 200 mm. The pneumatic quick-coupler is premounted.
* Please observe the installation instructions.
– Low overall height
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Weight [Kg] |
|---|---|---|---|---|
| 550249 | K10.3 | 2 x 10 | 2 x 25 | 13 |
| 550254 | K20.3 | 2 x 17 | 2 x 55 | 24 |
| Order No. |

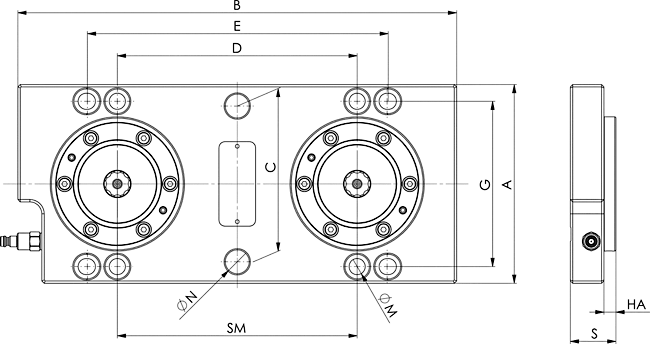

Size | A | B | C | D | E | G | HA | dia. N | dia. M | S | SM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 550249 | K10.3 | 166 | 366 | 133 | 200 | 250 – 252 | 138 | 10 | 20 | 13,5 | 38 | 200 |
| 550254 | K20.3 | 196 | 366 | 160 | 200 | 250 – 252 | 165 | 15 | 20 | 13,5 | 53 | 200 |
