Description
Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Blow out | Weight [Kg] |
---|---|---|---|---|---|
427641 | K10.2 | 12×10 | 12×25 | ● | 210 |
Hydraulic unlocking.
Pneumatic blow-out.
Clamping modules’ contact surface: Steel, stainless and hardened.
Base plate: Steel, unhardened.
Repetition accuracy < 0.005 mm.

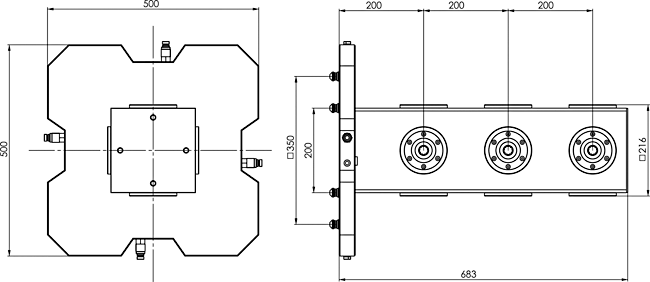

Hydraulic clamping cube for set-up-time-optimised clamping on clamping station 6204S6HA-008. Fastening is with pull-studs installed underneath.
The pitch spacing of the clamping modules is 200 mm. The quick-coupling plug is pre-mounted, and the integrated blow-out function can be individually connected.
* Please observe the installation instructions.
Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Blow out | Weight [Kg] |
---|---|---|---|---|---|
427641 | K10.2 | 12×10 | 12×25 | ● | 210 |
