Description
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Weight [Kg] |
|---|---|---|---|---|
| 420919 | K23 | 23 | 23 | 4,8 |
| Order No. |

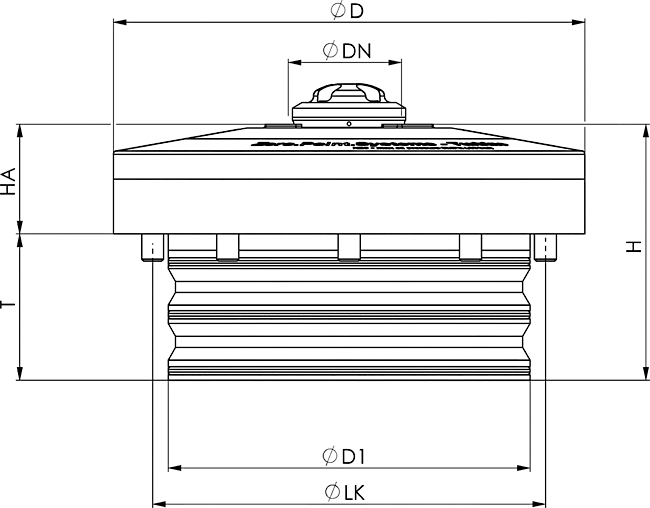

Size | dia. D | dia. DN | dia. D1 | H | HA | dia. LK | T |
|---|---|---|---|---|---|---|---|---|
| 420919 | K23 | 129 | 32 | 99 | 70 | 30 | 115 | 40 |

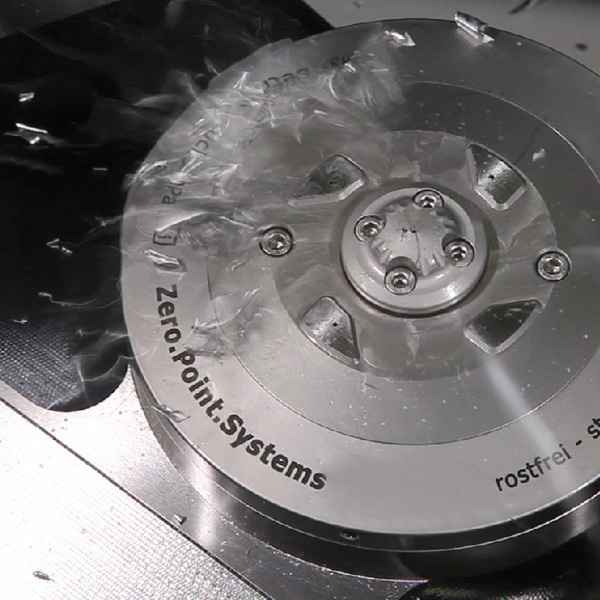

6102H “Turbine” high-end clamping module for full automation
Hydraulic opening.
Opening operating pressure: 25-50 bar
Retensioning operating pressure: 20 bar
Cover and piston hardened.
Repeatability < 0.005 mm.
Application:

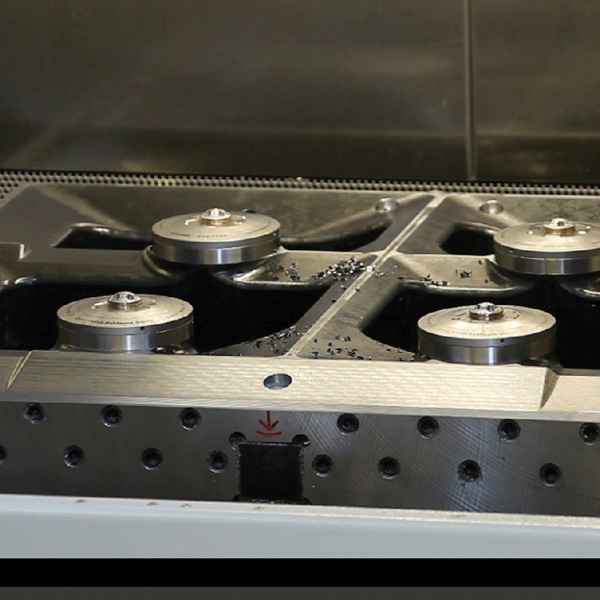

For fully automatic clamping solutions for use as machine table support in processing centres with automatic pallet changing system or robot loading and for installation in pallets, machine tables, clamping brackets and cubes. Many possible versatile uses in automation.
Note:
Hardened support surfaces as island design with integrated support control. Additional blowing off of the support surfaces by centrically running-out turbine spindles and blowing out of the sphere space Additional hydraulic 6 mm lift-out of the pallet to be changed for easier pallet removal.
Sensing options:
– Support control (pneumatic)
– Locking control (hydraulic)
Turbine has six connections:
1x hydr. opening (1) / 1x hydr. retensioning (2) / 1x pneum. support control (3) / 1x blow-off, blow-out and pneum. turbine blow-off (4) / 1x hydr. locking control (5) / 1x run out short stroke piston (6).
* Please observe the installation instructions.
On request:
– Installation diagrams
