with vertical base and mounting holes.
Reamed and case-hardened bearing bushes.
Hardened, ground and permanently-lubricated pins. Clamp nuts on lever arm to vary friction in movement. Material: steel, blued. Lever arm made of cast steel, blued. Handle of red, oil-resistant plastic.
These heavy vertical toggle clamps are especially suitable for production equipment and fixtures.

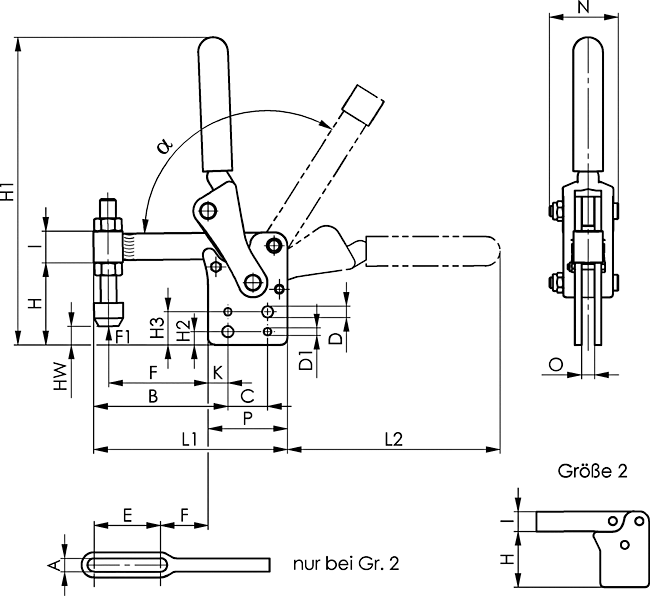

Dimensions:
| Order no. |
Size | A | B | C | D | D1 | E | F | H | H1 | H2 | H3 | HW min. | HW max. | I | K | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91330 | 2 | 6,2 | 48 | – | – | – | 30 | 12 | 42,0 | 144 | – | – | 3,5 | 22,8 | 15 | – | 85 | 94 |
| 90902 | 4 | 12,2 | 101 | 30 | 8,5 | 5,7 | – | 75 | 62,0 | 233 | 10 | 25 | -1,0 | 35,0 | 24 | 15 | 146 | 161 |
| 90910 | 6 | 12,2 | 121 | 45 | 10,5 | 7,7 | – | 95 | 87,5 | 289 | 15 | 35 | 0,0 | 58,0 | 30 | 15 | 181 | 189 |
| 90928 | 8 | 12,2 | 151 | 55 | 12,5 | 9,7 | – | 120 | 106,0 | 338 | 15 | 40 | 25,0 | 76,0 | 36 | 20 | 226 | 219 |
