6829ER/EL Swing clamp, pneumatic, screw-in version

Swing clamp, pneumatic, screw-in version

double-acting
Piston rod non-rusting, polished. Body is made of aluminium, anodised. HART-COAT® surface for wear-resistance. Including screw and spring washer for simple setting of the clamp arm position.

Mounting:
– with grooved nut 6829N (DIN 70852)
– with threaded flange 6829GF

Accessories (not included in pack):
– Clamping arm 6829SP
– Grooved nut 6829N
– Thread flange 6829GF
– Clamping screw 6880

Description

Order no.	Size	right swinging	left swinging	F3 [kN]	Connecting thread for clamping screws	Weight [g]
92809	25	●	–	0,17	M 6	450
92858	25	–	●	0,17	M 6	450
92817	32	●	–	0,27	M 8	550
92866	32	–	●	0,27	M 8	550
92825	40	●	–	0,45	M 8	700
92874	40	–	●	0,45	M 8	700
92833	50	●	–	0,70	M12	850
92882	50	–	●	0,70	M12	850
92841	63	●	–	1,10	M12	1000
92890	63	–	●	1,10	M12	1000

F3 = at 6 bar max. air pressure

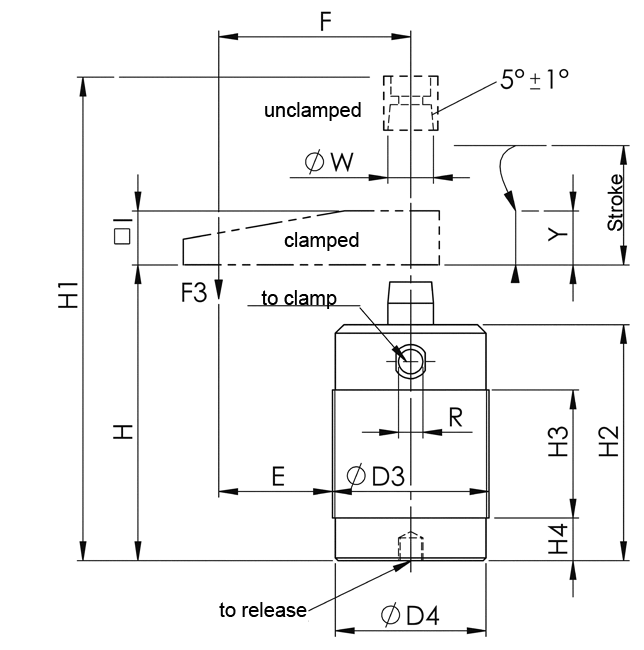

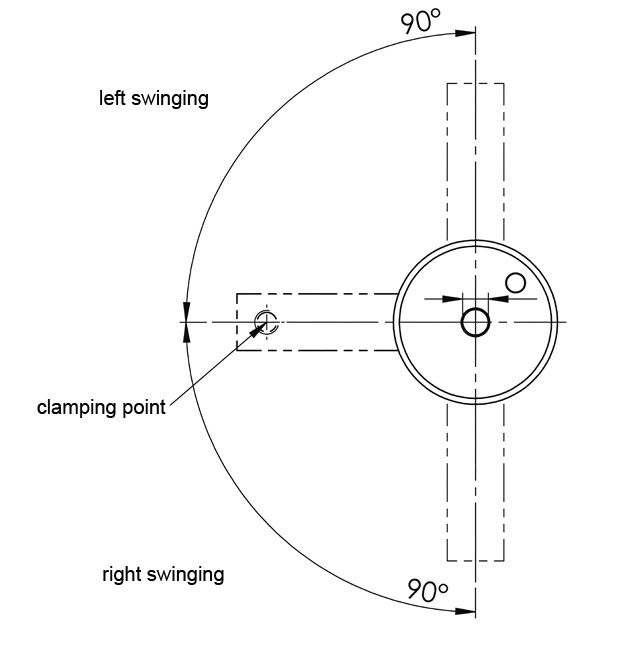

Dimensions:

Order no.	Size	D3	dia. D4	E	F	H	H1	H2	H3	H4	I	dia. M	O	R	dia. W	Piston dia.	Y Clamping stroke*	Stroke
92809	25	M40x1,5	38	30,0	50	73	118	70	35	10	16,0	M 6	M 8	M 5	14	25	13,0	26,0
92858	25	M40x1,5	38	30,0	50	73	118	70	35	10	16,0	M 6	M 8	M 5	14	25	13,0	26,0
92817	32	M50x1,5	48	35,0	60	83	132	79	40	15	19,0	M 8	M 8	G1/8	16	32	15,5	29,5
92866	32	M50x1,5	48	35,0	60	83	132	79	40	15	19,0	M 8	M 8	G1/8	16	32	15,5	29,5
92825	40	M55x1,5	53	42,5	70	87	136	83	45	15	19,0	M 8	M 8	G1/8	16	40	16,5	30,5
92874	40	M55x1,5	53	42,5	70	87	136	83	45	15	19,0	M 8	M 8	G1/8	16	40	16,5	30,5
92833	50	M65x1,5	62	47,5	80	92	148	87	50	15	25,5	M12	M10	G1/8	20	50	14,0	30,0
92882	50	M65x1,5	62	47,5	80	92	148	87	50	15	25,5	M12	M10	G1/8	20	50	14,0	30,0
92841	63	M80x1,5	77	50,0	90	98	153	92	56	15	25,5	M12	M10	G1/8	20	63	13,5	29,5
92890	63	M80x1,5	77	50,0	90	98	153	92	56	15	25,5	M12	M10	G1/8	20	63	13,5	29,5
