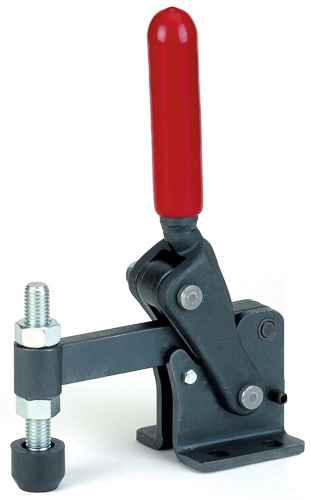

6811P Heavy vertical toggle clamp

with horizontal base.
Reamed and case-hardened bearing bushes.
Hardened, ground and permanently-lubricated pins. Clamp nuts on lever arm to vary friction in movement. Material: steel, blued. Lever arm made of cast steel, blued. Handle of red, oil-resistant plastic.

Note:

These heavy vertical toggle clamps are especially suitable for production equipment and fixtures.

SKU: ATC0000157 Categories: AMF Vertical Toggle Clamps, Clamps and clamping tools

Description
Reviews (0)

Description

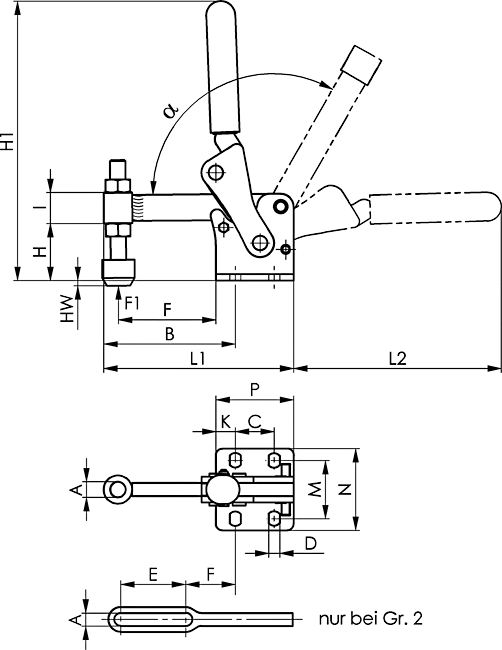

Dimensions:

Order no.	Size	A	B	C	D	E	F	H	H1	HW min.	HW max.	I	K	L1	L2	M	N	P
91314	2	6,1	57	20	7,1	30	21	25	127	-13,5	6	15	8,5	85	94	32	47	37
90878	4	12,2	100	30	8,5	–	75	44	216	-19,0	14	24	15	146	160	45	65	60
90886	6	12,2	121	45	10,5	–	95	65	263	-22,0	35	30	15	181	185	52	78	75
90894	8	12,2	151	55	12,5	–	120	71	303	-10,0	41	36	20	226	203	75	108	95
