Description
Note:

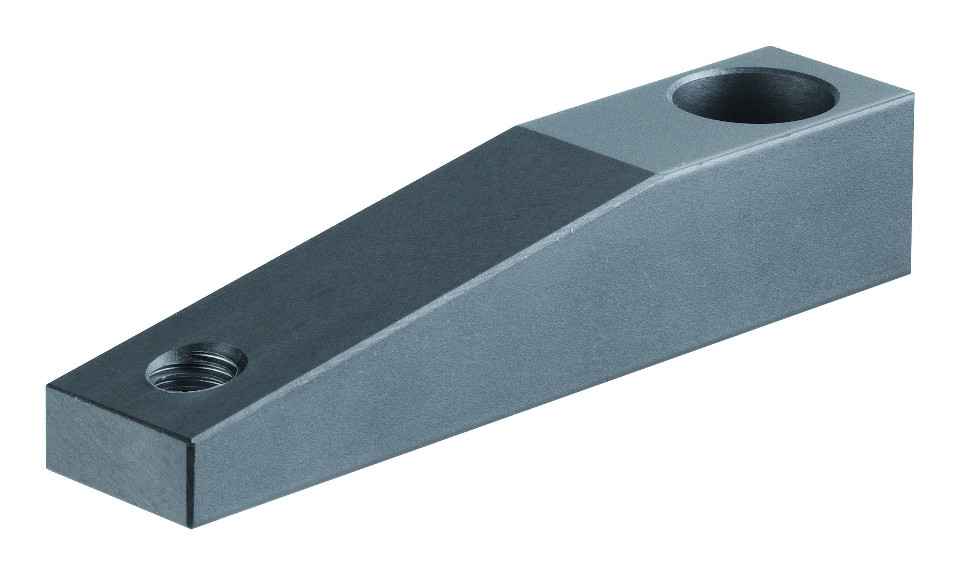

Fitting clamping arm:
1) Set up clamping arm with spring washer and screw without play.
2) Turn clamping arm into position.
3) Hold clamping arm fixed with wrench and tighten screw.
Clamping arm removal:
1) Hold clamping arm fixed with wrench and loosen screw.
2) With light blows from below (plastic hammer), separate clamping arm from the piston rod.
Caution! No side blows permitted!
| Order no. |
Size | dia. D1 | F | H | H1 | I | L | M | N | dia. O | dia. W | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 92486 | 12 | 9 | 35 | 5,0 | 5,0 | 12 | 45 | M4 | 4 | 5,5 | 8 | 13 |
| 92494 | 16 | 9 | 41 | 5,0 | 4,0 | 12 | 51 | M4 | 4 | 5,5 | 8 | 15 |
| 92502 | 20 | 14 | 48 | 5,5 | 7,5 | 16 | 64 | M6 | 6 | 8,5 | 12 | 31 |
| 93674 | 25 | 14 | 50 | 6,5 | 6,0 | 16 | 66 | M6 | 6 | 8,5 | 14 | 32 |
| 93682 | 32 | 14 | 60 | 9,0 | 7,0 | 19 | 80 | M8 | 10 | 8,5 | 16 | 55 |
| 93690 | 40 | 14 | 70 | 9,0 | 7,0 | 19 | 90 | M8 | 10 | 8,5 | 16 | 65 |
| 93708 | 50 | 17 | 80 | 10,0 | 9,0 | 25 | 105 | M12 | 10 | 10,5 | 20 | 132 |
| 93716 | 63 | 17 | 90 | 10,0 | 9,0 | 25 | 115 | M12 | 10 | 10,5 | 20 | 149 |
