Description
| Size | F1 [kN] |
Clamping screw |
HW min. | HW max. | Weight |
|---|---|---|---|---|---|
| 1 | 1 | M5x30 | -6.0 | 4.5 | 100 |
| Size | Red | Yellow | Orange | Green | Blue | Black |
|---|---|---|---|---|---|---|
| 1 | 90514 | 557037 | 557330 | 557491 | 557654 | 557989 |
clamping arm with fixed distance of clamping screw and horizontal base.
Galvanized and passivated. Stainless steel rivets. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Safety clamping piece with finger protection.

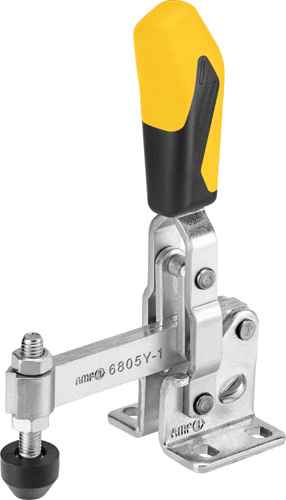

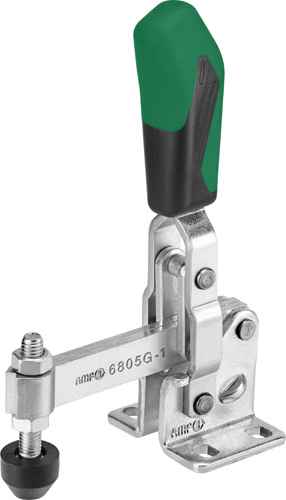

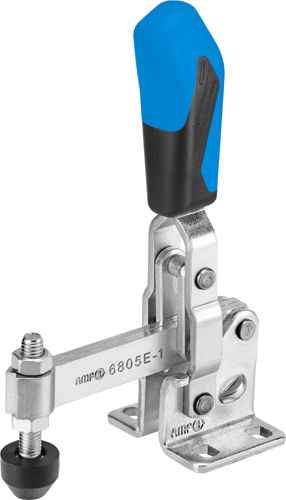

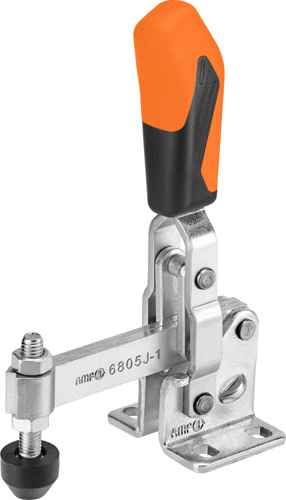

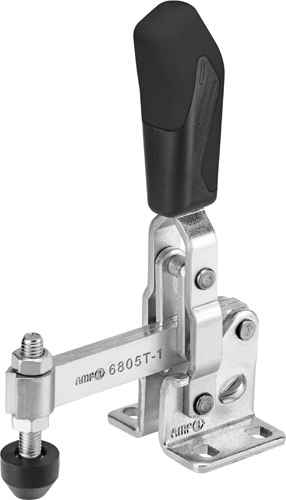

*It is able to select different color of toogle clamps handle. Handle colors and them ordering number at table belove.
| Size | F1 [kN] |
Clamping screw |
HW min. | HW max. | Weight |
|---|---|---|---|---|---|
| 1 | 1 | M5x30 | -6.0 | 4.5 | 100 |
| Size | Red | Yellow | Orange | Green | Blue | Black |
|---|---|---|---|---|---|---|
| 1 | 90514 | 557037 | 557330 | 557491 | 557654 | 557989 |
