Description
Application:
These pneumatic toggle clamps are of machine tool quality and can be installed in machines such as material handling lines and special machines. Opening and clamping position of the clamp can be controlled electrically and can be intergrated into automated manufacturing.
Note:
Please enquire separately for suitable fastening kits and proximity switches for end position monitoring.
| Order no. |
Size | F1 [kN] |
F2 [kN] |
F3 [kN] |
F4 [kN] |
F5 [kN] |
Vn [dm³] |
Weight [g] |
|---|---|---|---|---|---|---|---|---|
| 92106 | 0 | 0,6 | 1,0 | 0,2 | 0,4 | 0,10 | 0,10 | 260 |
| 92122 | 1 | 0,8 | 1,2 | 0,6 | 0,8 | 0,19 | 0,15 | 500 |
F3+F4 = maximum clamping force at 6 bar.
Vn = Air consumption per double stroke in dm³ at 6 bar.
| Order no. |

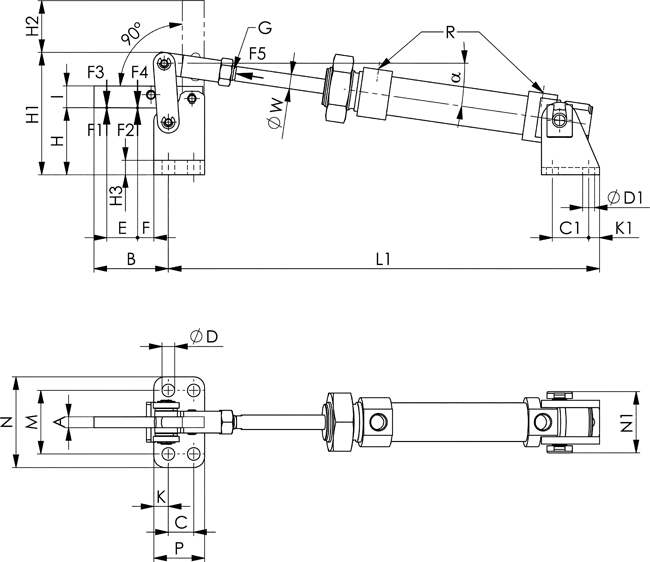

Size | A | B | C | C1 | C2 | dia. D | dia. D1 | E | F | G | H | H1 | H2 | I |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 92106 | 0 | 5 | 34 | 11 | 175 | 15 | 4,5 | 5,5 | 14 | 7 | 27 | 26 | 76 | 6 | 10 |
| 92122 | 1 | 6 | 41 | 14 | 200 | 20 | 7,0 | 6,5 | 17 | 9 | 35 | 37 | 96 | 8 | 12 |
| Order no. |
Size | K | L | M | N | O | R | T | U | V | dia. W | α | Piston dia. | Piston stroke |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 92106 | 0 | 5,5 | 22 | 35 | 47,5 | M6 | M5 | 177 | 27 | 18 | 6 | 6,6° | 16 | 40 |
| 92122 | 1 | 8,0 | 28 | 50 | 62,0 | M8 | G1/8 | 204 | 30 | 24 | 8 | 9,0° | 20 | 40 |
