Description
| Size | F1 [kN] |
F2 [kN] |
Clamping screw |
Weight [g] |
|---|---|---|---|---|
| 3 | 1,4 | 2,5 | M8x45 | 340 |
| 4 | 2,0 | 3,0 | M8x65 | 585 |
| 5 | 3,0 | 5,0 | M12x80 | 1480 |
| 6 | 3,5 | 5,5 | M12x110 | 2200 |

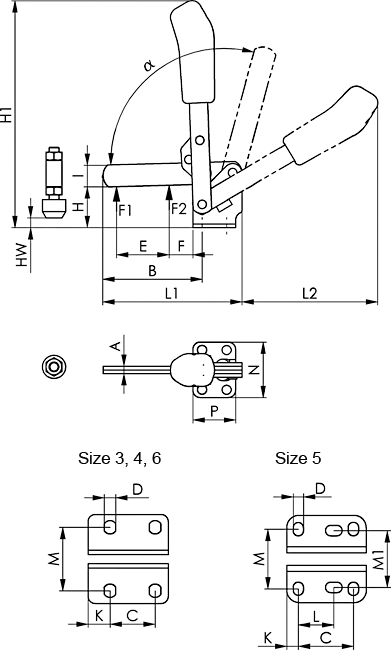

Dimensions:
| Size | A | B | C | D | E | F | H | H1 | HW min. | HW max. | I | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 6 | 81,0 | 20,0 | 7,5 | 43 | 19,5 | 33,5 | 186 | 0 | 12,0 | 18 | 7,5 |
| 4 | 8 | 101,0 | 32,0 | 8,6 | 61 | 17,0 | 42,5 | 221 | -8 | 21,0 | 20 | 13,0 |
| 5 | 10 | 141,0 | 45,0 | 8,5 | 88 | 30,5 | 55,5 | 281 | -6 | 25,5 | 25 | 9,5 |
| 6 | 10 | 166,5 | 50,5 | 13,0 | 90 | 20,5 | 81,0 | 331 | -5 | 51,0 | 30 | 24,5 |

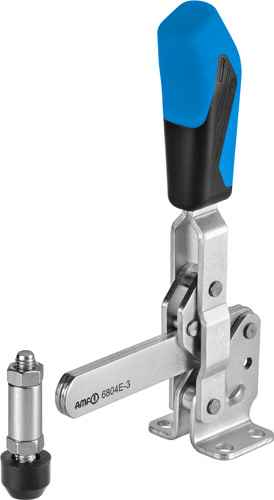

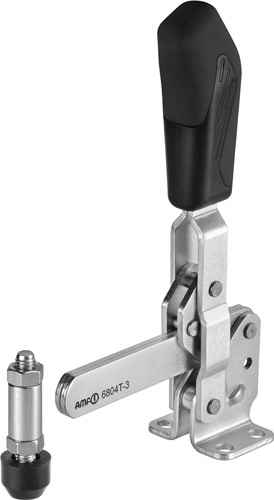

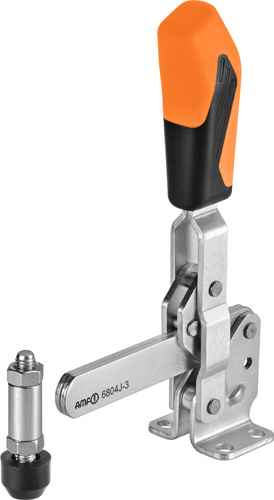

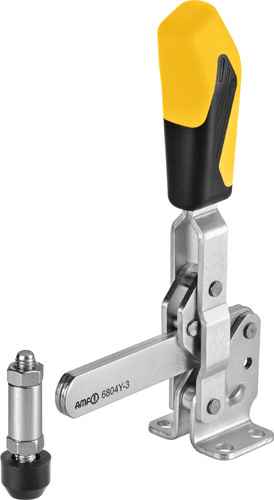

| Size | Red | Yellow | Orange | Green | Blue | Black |
|---|---|---|---|---|---|---|
| 3 | 90431 | 557028 | 557322 | 557483 | 557635 | 557981 |
| 4 | 90449 | 557029 | 557323 | 557484 | 557636 | 557982 |
| 5 | 90456 | 557030 | 557324 | 557485 | 557637 | 557983 |
| 6 | 90464 | 557031 | 557325 | 557486 | 557638 | 557984 |
