6802 Vertical toggle clamp

with open clamping arm and vertical base.
Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 to 6, run in hardened bushings. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Safety clamping piece with finger protection. Lock washer for the thrust bolt at the end of the clamping arm.

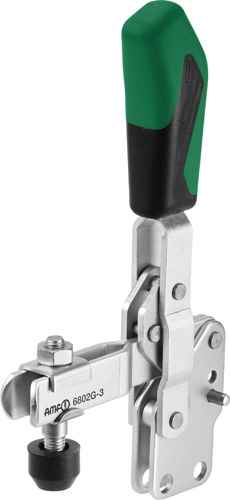

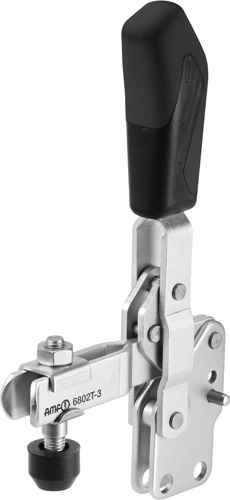

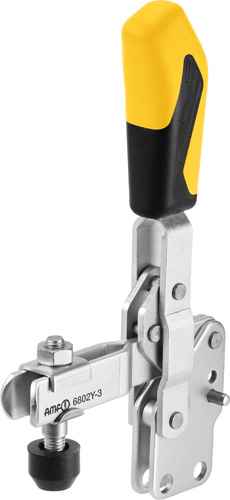

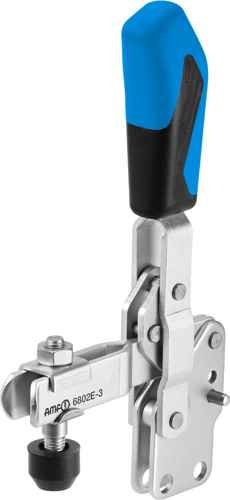

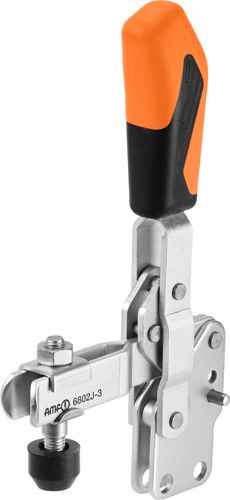

*It is able to select different color of toogle clamps handle. Handle colors and them ordering number at table belove.

Description

Size	F1 [kN]	F2 [kN]	Clamping screw	Weight [g]
1	0,6	1,1	M 5x 30	105
2	0,8	1,2	M 6x 35	175
3	1,2	2,5	M 8x 45	410
4	1,7	3,0	M 8x 65	630
5	3,0	5,0	M12x 80	1480
6	3,4	5,5	M12x110	2200

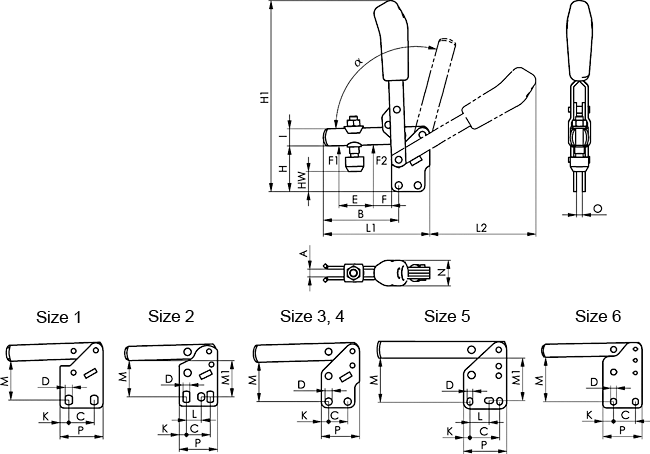

Dimensions:

Size	A	B	C	D	E	F	H	H1	HW min.	HW max.	I	K	L	L1	L2
1	5	39	16,0	4,5	18	6	29	109,0	6,0	12,5	10	5,5	–	61	59
2	6	52	20,0	5,5	25	11	38	144,5	11,5	19,5	12	6,0	12,5	78	80
3	8	79	20,0	7,5	36	19	48	200	16,5	25,0	18	7,5	–	112	114
4	10	101	32,0	8,6	54	16	65	244	16,5	45,5	20	13,0	–	141	130
5	14	140	45,0	8,5	72	35	77	301	18,0	49,0	25	9,5	26,5-31,5	195	183
6	14	165	50,5	13,0	89	28	117	369	33,0	90,5	30	24,5	–	231	206

Size	Red	Yellow	Orange	Green	Blue	Black
1	90217	557018	557310	557472	557622	557970
2	90225	557019	557311	557473	557623	557971
3	90233	557020	557312	557474	557624	557972
4	90241	557021	557313	557475	557625	557973
5	90258	557022	557314	557476	557626	557974
6	90266	557023	557315	557477	557627	557975
