Max. operating pressure dyn. at +50°C 375 bar
Bending radius = min. 30 mm

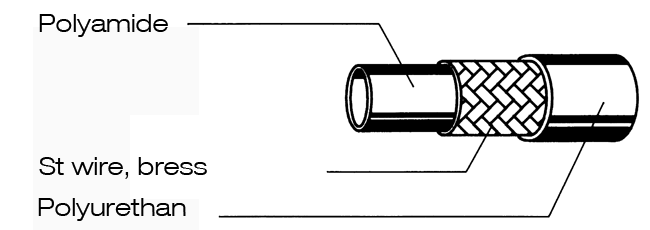

Steel fitting, galvanized and passivated. Hose of synthetic material with high tensile brassed steel-wire braid.
Insert hose and tighten with 1/4 turn maximum.
We recommend only using the 3-metre long high pressure hose for double-acting elements. These high pressure hoses can be used directly in pipe connections. The period of use of a hydraulic hose, including any storage period, should not exceed six years. The serviceability must be assessed according to fixed inspection criteria.

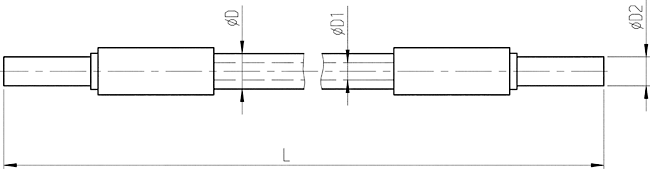

| Order No. |
Test pressure [bar] |
Bending radius min. [mm] |
dia. D [mm] |
dia. D1 [mm] |
dia. D2 [mm] |
L [mm] |
Weight [g] |
|---|---|---|---|---|---|---|---|
| 63198 | 750 | 30 | 9,8 | 4,8 | 8 | 300 | 65 |
| 63206 | 750 | 30 | 9,8 | 4,8 | 8 | 500 | 90 |
| 63214 | 750 | 30 | 9,8 | 4,8 | 8 | 800 | 120 |
| 63222 | 750 | 30 | 9,8 | 4,8 | 8 | 1250 | 180 |
| 63230 | 750 | 30 | 9,8 | 4,8 | 8 | 2000 | 265 |
| 63248 | 750 | 30 | 9,8 | 4,8 | 8 | 3000 | 380 |
