Description
Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Weight [g] |
---|---|---|---|---|
306159 | K 5 | 5 | 13 | 300 |
Order No. |

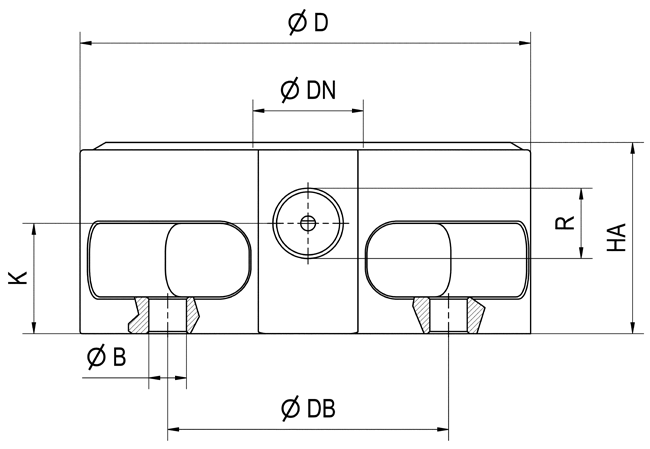

Size | dia. B | dia. D | dia. DB | dia. DN | HA | K | R |
---|---|---|---|---|---|---|---|---|
306159 | K 5 | 5,8 | 62 | 54 | 15 | 26 | 15 | G1/8 |
Hydraulic opening.
Opening operating pressure: min. 50 bar – max. 60 bar
Cover and piston hardened.
Repeatability < 0.005 mm.
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
The surface-mounted clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The contact surface is the upper surface of the housing.
The clamping module has one connection: 1x hydr. opening (1).
* Please observe the installation instructions.
– Individual housing
Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Weight [g] |
---|---|---|---|---|
306159 | K 5 | 5 | 13 | 300 |
Order No. |
Size | dia. B | dia. D | dia. DB | dia. DN | HA | K | R |
---|---|---|---|---|---|---|---|---|
306159 | K 5 | 5,8 | 62 | 54 | 15 | 26 | 15 | G1/8 |
