Description
| Order no. |

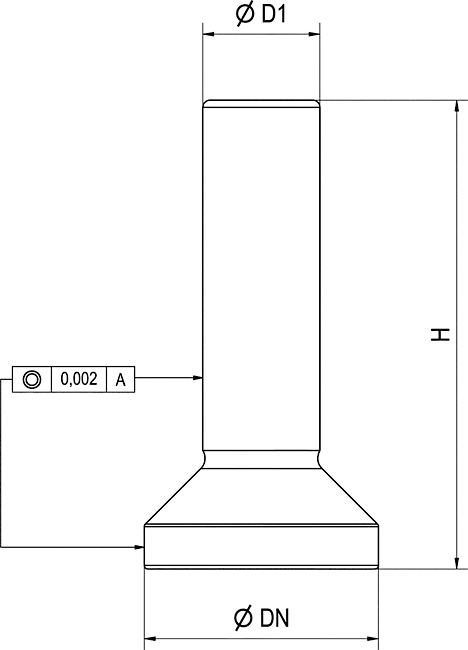

for clamping modules | dia. D1 | dia. DN | H | Weight [g] |
|---|---|---|---|---|---|
| 306241 | K 5 | 8 | 15 | 48 | 60 |
| 306167 | K10 | 12 | 22 | 48 | 85 |
| 306183 | K20 / G1000 | 16 | 32 | 64 | 225 |
| 306209 | K40 | 20 | 40 | 82 | 455 |

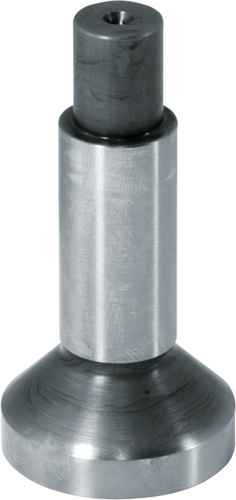

6370ZZ Positioning pull-stud
Hardened.
Application:
The positioning nipple makes all of the surface-mounted modules easier to align. It can be clamped directly in the machine spindle, thus achieving the desired gauges when the machine is traversed.
