Description
| Order No. |

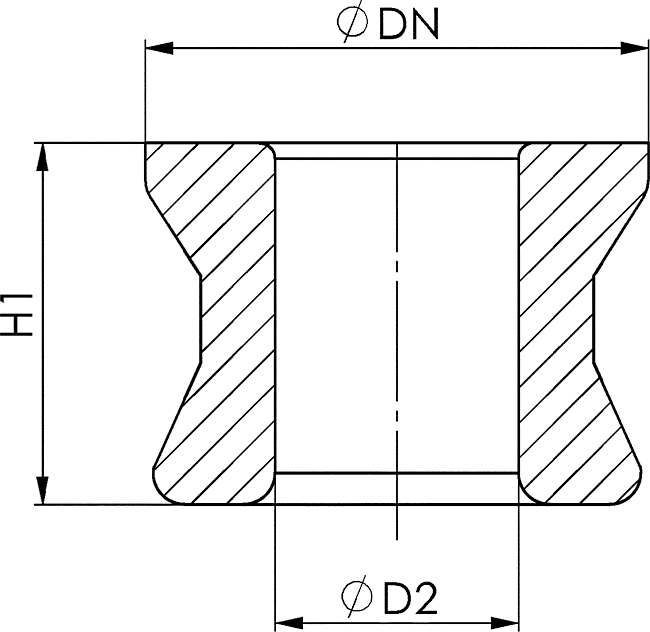

Size | dia. DN | dia. D2 | H1 | Weight [g] |
|---|---|---|---|---|---|
| 340059 | K10 | 21,8 | 12,0 | 16 | 25 |
| 305912 | K20 | 31,8 | 15,5 | 23 | 80 |
| 426882 | K40 | 39,8 | 20,0 | 29 | 160 |
6370ZNSN Compensation pull-stud
Hardened, for hydraulic and pneumatic clamping modules.
Note:
The compensation pull-stud is supported by bearings to make it radially mobile and is used when large distance and angle tolerances have to be compensated between the pull-stud holes.
The pull-stud only has a holding function and does not absorb a lateral load.
