6370ZN-40-2 K40 pull-stud for M18 engagement screw

Hardened, for clamping modules size K40.

Design:

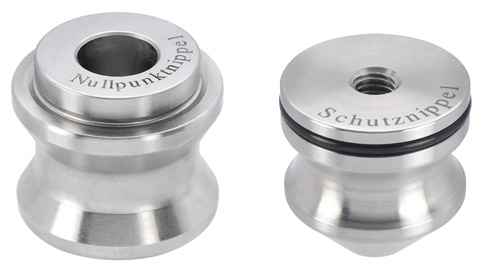

Order no. 554942: zero point pull-stud, order no. 554943: timing pull-stud,
order no. 554944: undersize pull-stud, order no. 303214: protection pull-stud

Note:

The timing pull-stud has an additional alignment bore, which can optionally be used for simple installation.

AMF
SKU: ATC0000202 Category:

Description

Order
No.

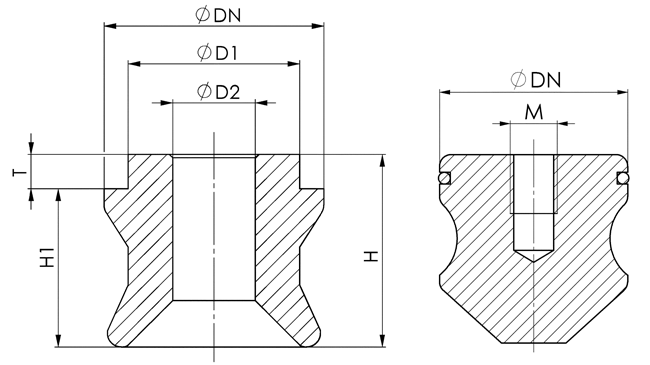

Size dia. DN dia. D1 dia. D2 H H1 M T Weight
[g]
554942 K40 40,0 30 18 34 29 5 170
554943 K40 40,0 30 18 34 29 5 170
554944 K40 39,8 30 18 34 29 5 170
303214 K40 39,8 M 8 180
