Description
| Order No. |

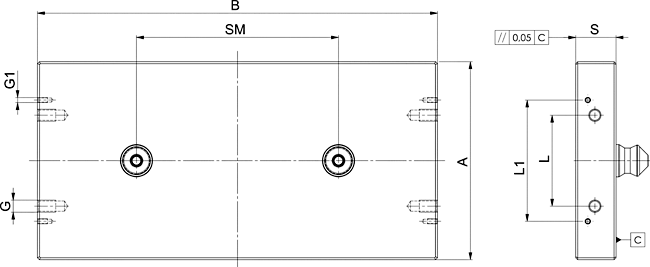

Size | A | B | G | G1 | L | L1 | S | SM | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| 426700 | K10 | 146 | 240 | M12 | M5 | 90 | 120 | 30 | 100 | 2,5 |
| 425041 | K20 | 196 | 396 | M12 | M5 | 90 | 120 | 40 | 200 | 6,0 |
| 426783 | K40 | 296 | 546 | M12 | – | 120 | – | 45 | 320 | 19,0 |

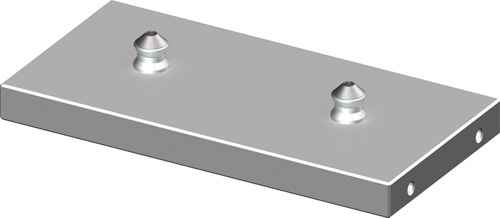

6370P2 Fixture plate
High-strength aluminium, suitable for double clamping station
Note:
Fastening bores for handles are attached to the end faces of the interchangeable pallets. See dimensions table L1 and G1. We can incorporate additional fastening bores according to your specifications in the change pallet on request.
On request:
Other dimensions, pitch spacings and number of equipped pull-studs.
