Description
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Weight [g] |
|---|---|---|---|---|
| 305979 | K 5 | 1,5 | 13 | 150 |
| Order No. |

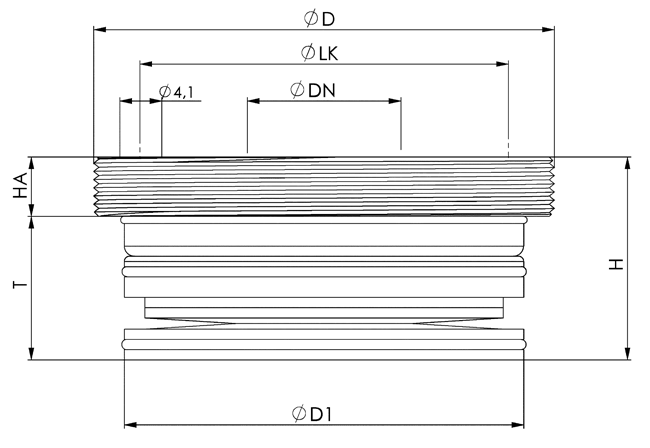

Size | dia. D | dia. DN | dia. D1 | H | HA | dia. LK | T |
|---|---|---|---|---|---|---|---|---|
| 305979 | K 5 | M45 x 1 | 15 | 39 | 19,8 | 5,8 | 36 | 14 |
6370EARL Installation clamping module, round, screw-in version
Pneumatic opening.
Opening operating pressure: min. 8 bar – max. 12 bar
Retensioning operating pressure (turbo): min. 5 bar – max. 6 bar
Cover and piston hardened.
Repeatability < 0.005 mm.
Application:

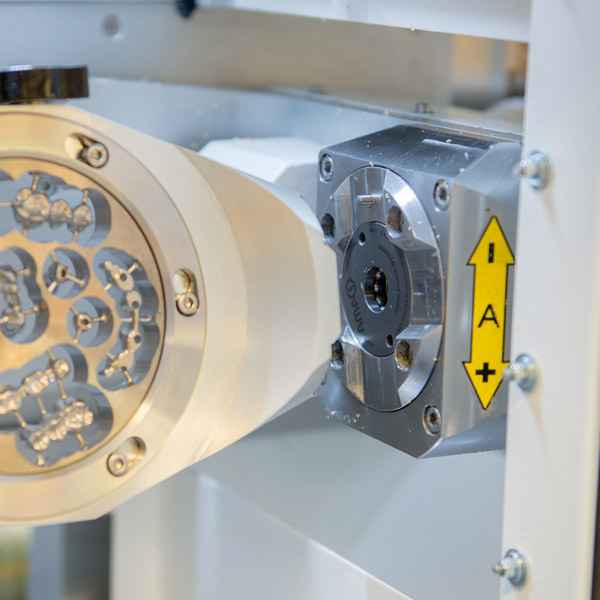

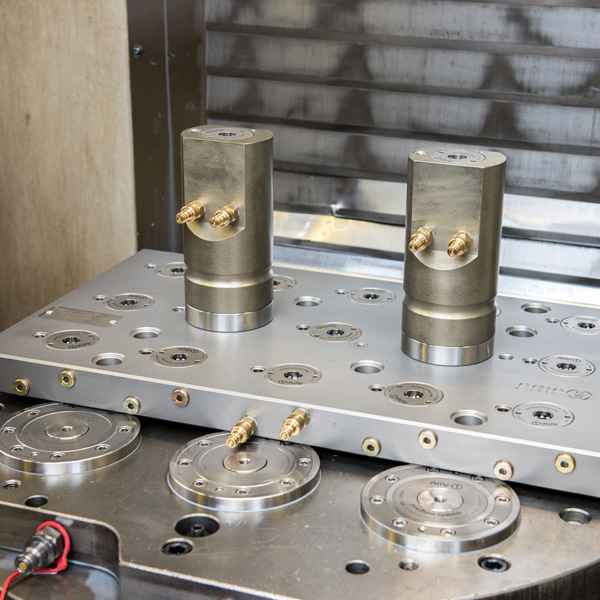

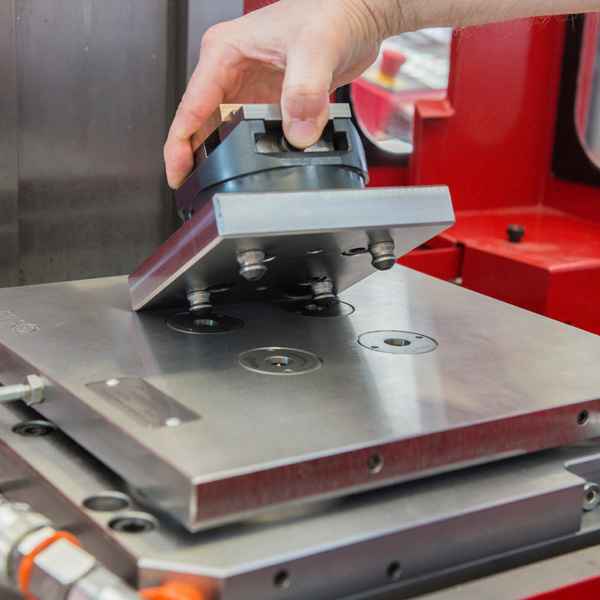

Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining. With small space requirement and low installation height.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. To achieve the specified pull-in and locking forces, it must be briefly retensioned pneumatically (turbo) (2). Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free). The contact surface is the upper surface of the housing. Use of the pneumatic pressure booster 6370ZVL is recommended.
The clamping module has two connections:
1x pneum. opening (1) / 1x pneum. retensioning (turbo) (2).
For simple installation, we recommend the AMF face spanner under order no. 41046.
* Please observe the installation instructions.
On request:
– Installation diagrams
