Description

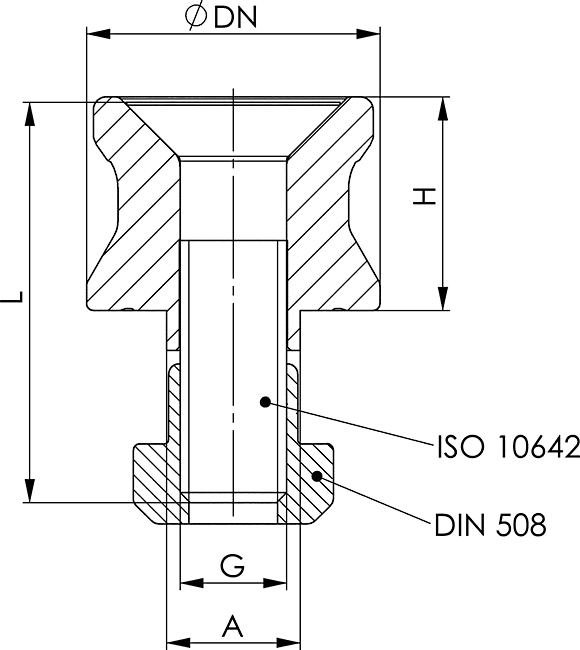

| Order No. |
Size | A | dia. DN | G | H | L | Weight [g] |
|---|---|---|---|---|---|---|---|
| 550438 | K10 | 10 | 22 | M8 | 16 | 30 | 48 |
| 550439 | K10 | 12 | 22 | M8 | 16 | 35 | 51 |
| 550440 | K10 | 14 | 22 | M8 | 16 | 35 | 54 |
| 550441 | K20 | 14 | 32 | M12 | 23 | 45 | 143 |
| 550442 | K20 | 16 | 32 | M12 | 23 | 45 | 147 |
| 550443 | K20 | 18 | 32 | M12 | 23 | 50 | 157 |
6210ZN Pull-stud for T-slots
Application:

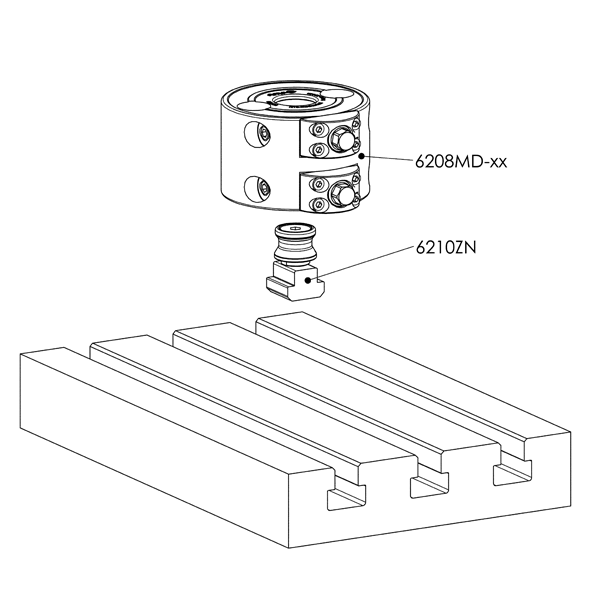

The pull-stud for T-slots enables the AMF zero-point clamping system to be positioned and clamped directly to the machine table by means of clamping slots.
These pull-studs can be used for pneumatic, hydraulic and mechanical clamping modules, and also for mechanical double clamping modules.
Note:

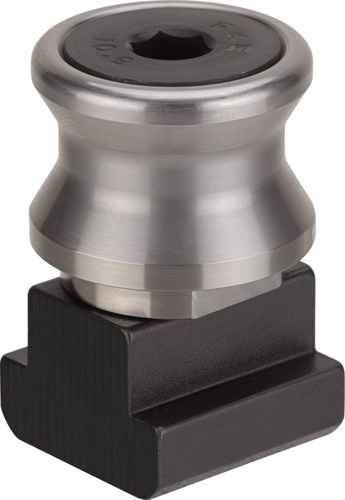

Supplied as standard is, as shown:
– zero point pull-studs with slot (dimension A)
– T-nut
– countersunk head screw (strength class 10.9)
Advantage:
Simple, quick and flexible clamping of workpieces on the machine table with varying clearances of the pull-stud bores.
