Mechanical opening and closing.
Tempered steel, plasma-nitrided and burnished.
Repetition accuracy 0.01 mm.

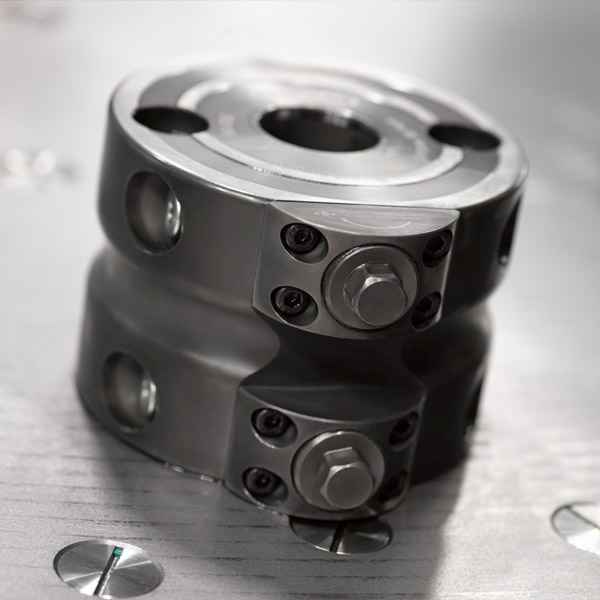

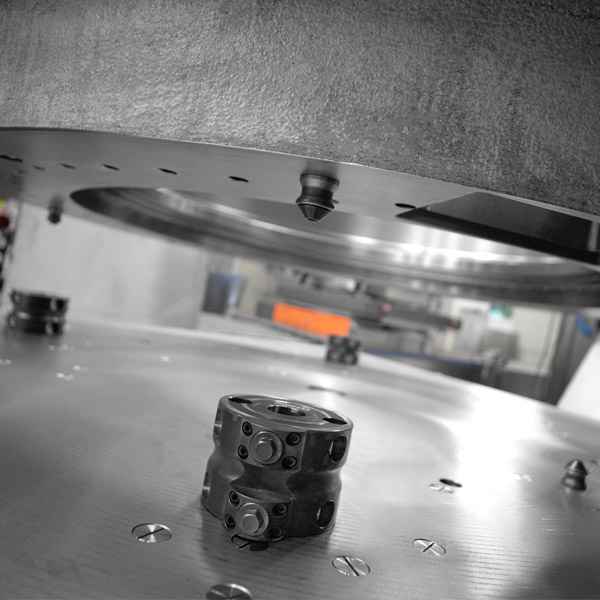

Mechanical “double clamping module” for setting time-optimised clamping during cutting and non-cutting machining. Especially suitable for the modular design of clamping solutions via zero point clamping system.
This clamping system combines two separately operable mechanical zero-point clamping systems.

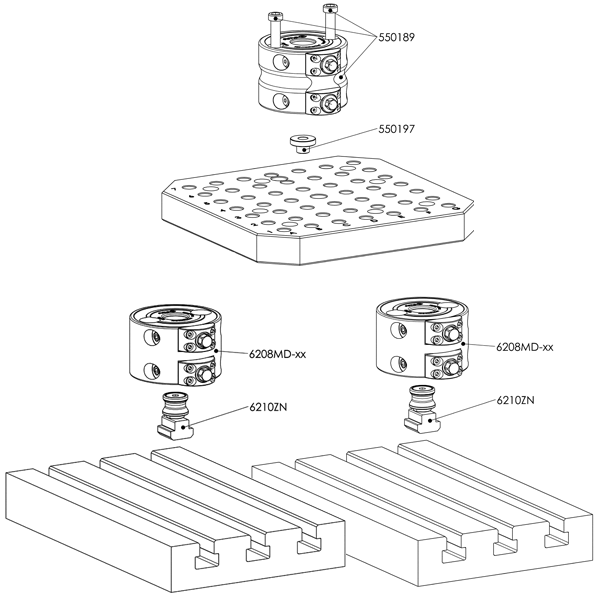

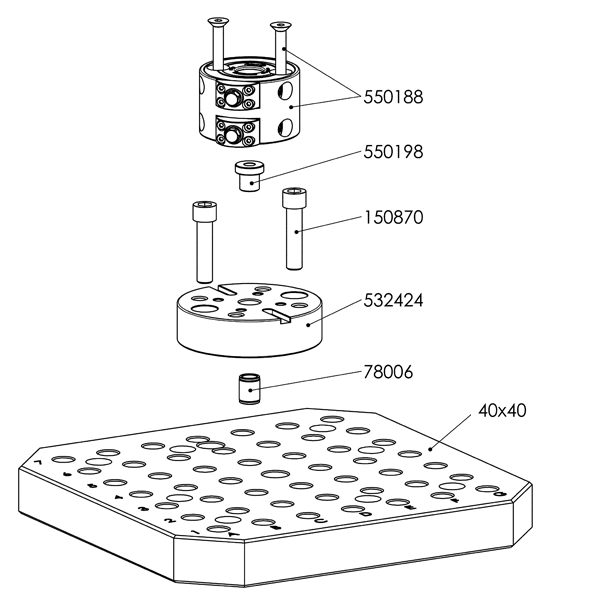

In conjunction with the pull-stud for T-slots, this clamping module is simply and quickly fastened to the machine table via clamping slots. Additional height adapters, workpieces or fixtures can be fastened to the top with pull-studs.
Pull-stud: The K10 and K20 versions of the pull-studs are used with this mechanical clamping module. The zero point, sword or undersize pull-stud can be used, depending on the application.
This clamping module can be used at ambient temperatures of up to max. 200°C.
* Please observe the installation instructions.
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Tightening torque [Nm] |
Weight [Kg] |
|---|---|---|---|---|---|
| 550188 | K10 | 6 | 25 | 30 | 1,6 |
| 550189 | K20 | 10 | 55 | 30 | 5,1 |
| Order No. |

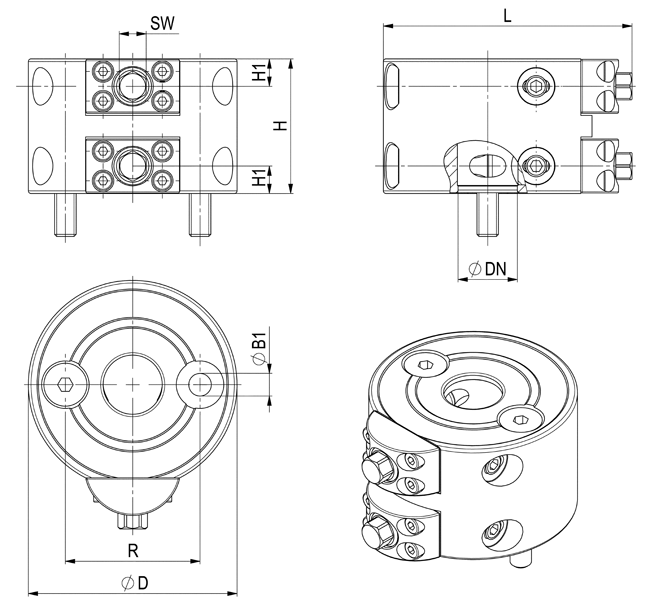

Size | dia. B1 | dia. D | dia. DN | H ±0.01 |
H1 | L | R | SW |
|---|---|---|---|---|---|---|---|---|---|
| 550188 | K10 | 9,0 | 77,5 | 22 | 50 | 10,2 | 92 | 50 | 10 |
| 550189 | K20 | 13,5 | 112,0 | 32 | 80 | 15,0 | 132 | 80 | 13 |
