Pneumatic opening.
Pneumatic blow-out.
Opening operating pressure:
K5.3 min. 5 bar – max. 12 bar
K10.3 min. 5 bar – max. 12 bar
K20.3 min. 4.5 bar – max. 12 bar
Cover and piston hardened.
Repeat accuracy < 0.005 mm.

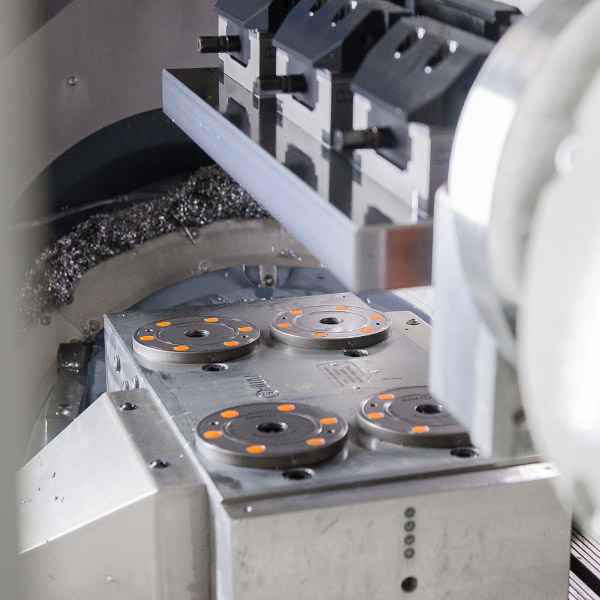

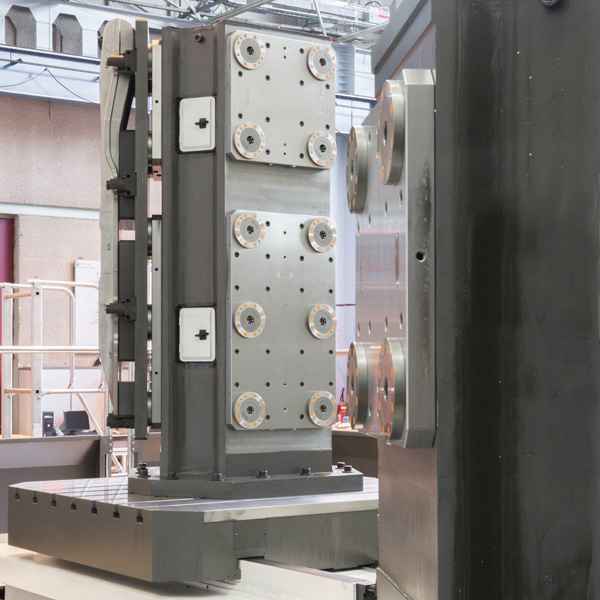

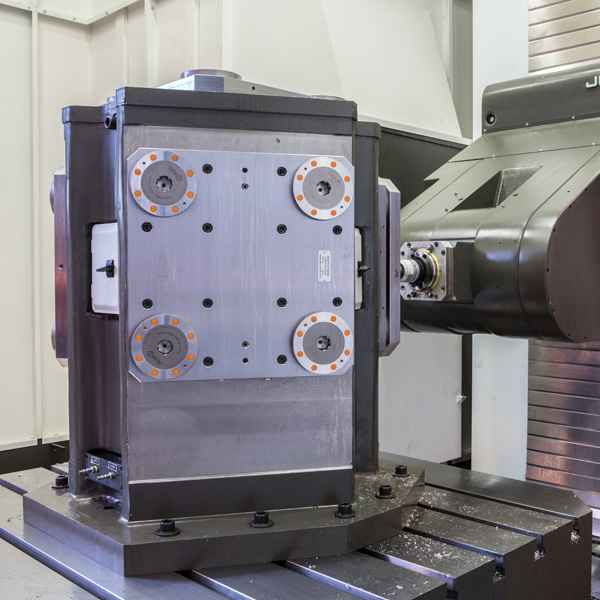

Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module with blow-out and support control has two connections:
1x pneum. opening (1), 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
– Installation diagrams
| Order No. |
Size | Pull – in/locking force up to [kN] |
Holding force [kN] |
Blow out | Weight [Kg] |
|---|---|---|---|---|---|
| 553152 | K5.3 | 1,5 | 13 | ● | 0,5 |
| 428730 | K10.3 | 10,0 | 25 | ● | 1,4 |
| 428755 | K20.3 | 17,0 | 55 | ● | 2,6 |

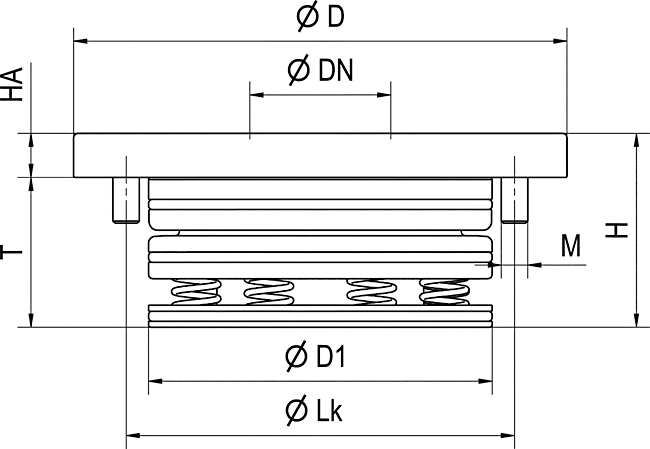

| Order No. |
Dydis | dia. D | dia. DN | dia. D1 | H | HA | dia. LK | M | T |
|---|---|---|---|---|---|---|---|---|---|
| 553152 | K5.3 | 78 | 15 | 54,5 | 29 | 8 | 62 | 6xM4 | 21 |
| 428730 | K10.3 | 112 | 22 | 78,0 | 35 | 10 | 88 | 6xM6 | 25 |
| 428755 | K20.3 | 138 | 32 | 102,0 | 49 | 15 | 115 | 8xM6 | 34 |
