Description
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Blow out | Weight [Kg] |
|---|---|---|---|---|---|
| 427518 | K10.2 | 4 x 10 | 4 x 25 | ● | 38 |

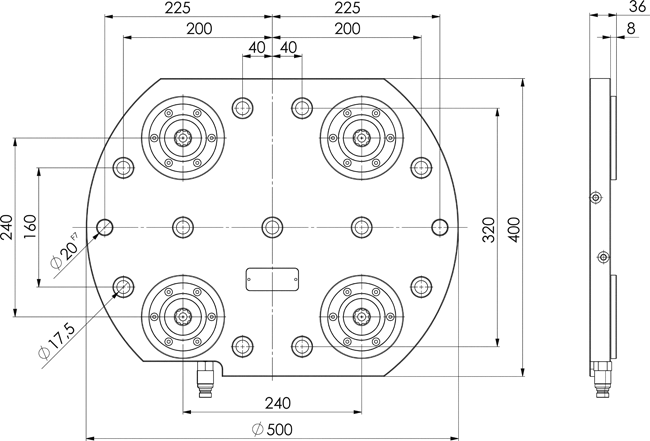

6204S4HA-003 Quadruple clamping station
Hydraulic unlocking.
Pneumatic blow-out.
Opening operating pressure: min. 50 bar – max. 60 bar.
Clamping modules’ contact surface: Steel, stainless and hardened.
Base plate: Steel, unhardened.
Repetition accuracy < 0.005 mm.
Design:
Hydraulic clamping station for optimised clamping times on machine tables with distance between slots of 80 mm. Clamping is with M16 socket head screws. At least two fitting holes are attached for alignment.
The insertion dimension of the clamping modules is 240 mm. The quick coupling plug is pre-mounted, and the integrated blow-out function can be individually connected.
Application:
e.g. for Mazak Variaxis 500
Note:
* Please observe the installation instructions.
Advantage:
Low overall height of only 36 mm.
