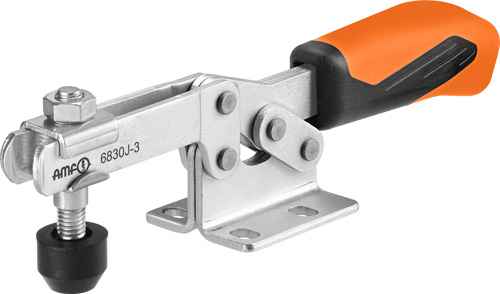

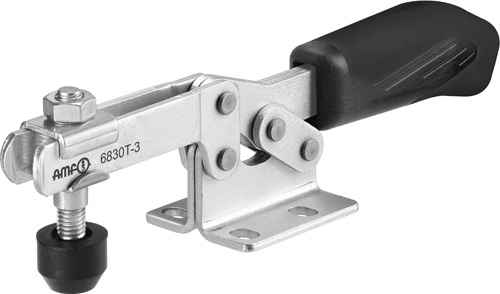

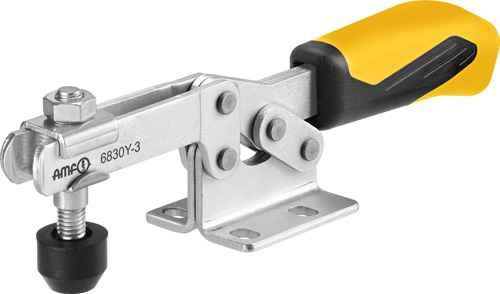

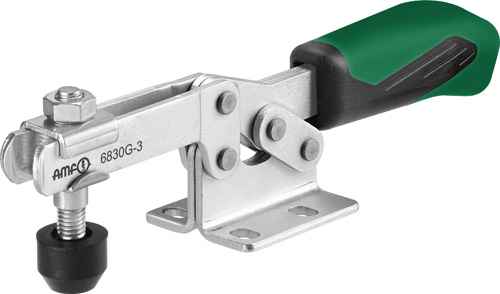

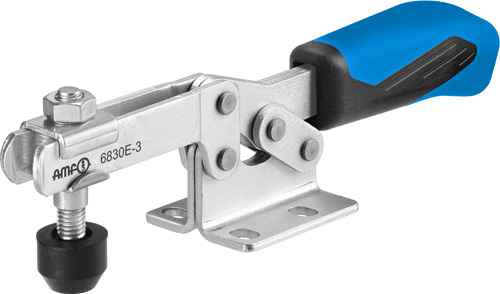

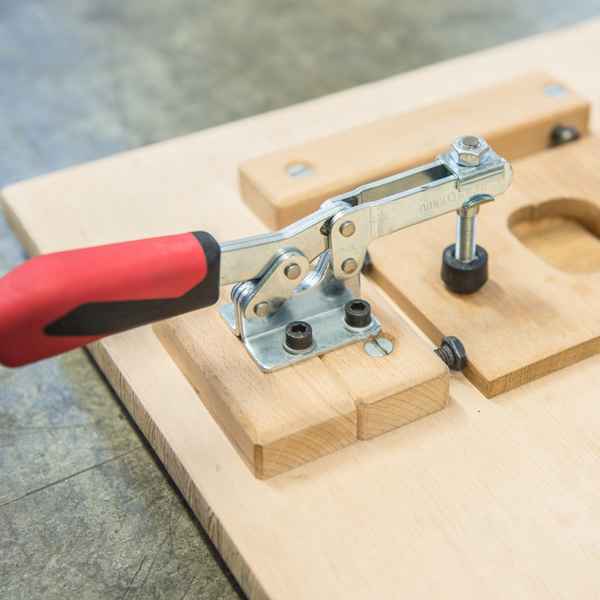

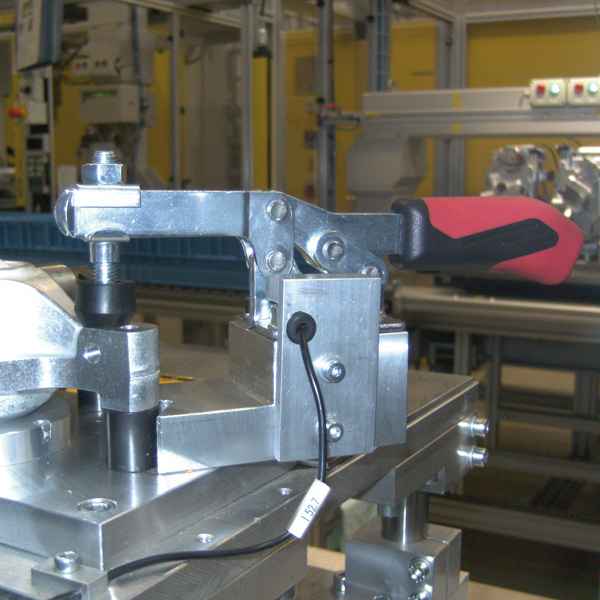

6830 Horizontal toggle clamp

with open clamping arm and horizontal base.
Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 to 5, run in hardened bushings. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Lock washer for the thrust bolt at the end of the clamping arm.

Description

Size	F1 [kN]	F2 [kN]	Clamping screw	Weight [g]
0	0,25	0,4	M4x25	35
1	0,8	1,1	M5x30	105
2	1,0	1,2	M6x35	185
3	1,8	2,5	M8x45	320
4	2,0	3,0	M8x65	700
5	3,0	5,0	M8x65	1080

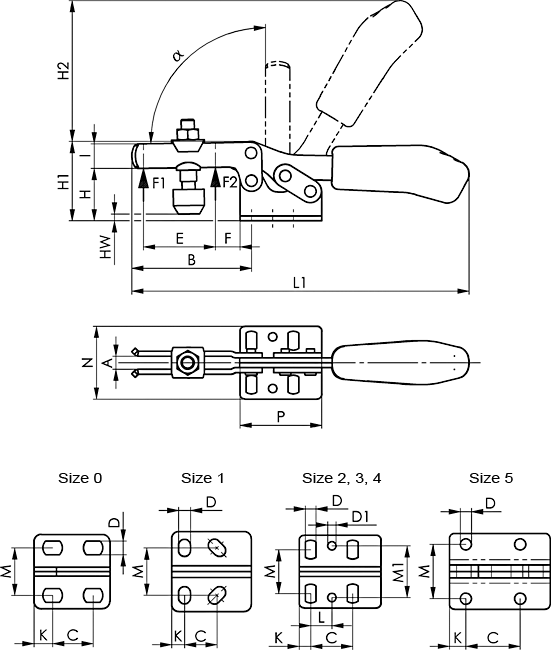

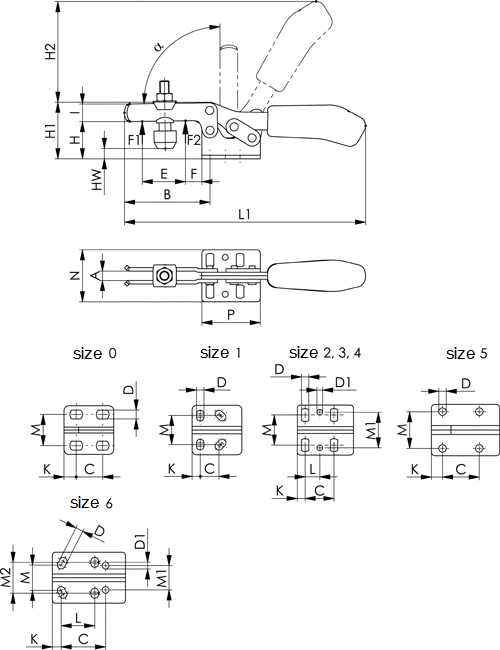

Dimensions:

Size	A	B	C	D	D1	E	F	H	H1	H2	HW min.	HW max.	I	K	L	L1	M	M1	N	P	α
0	4	28	11,5-15,5	4,6	–	9,0	5,5	14,5	23,0	34	-5,5	0,0	7,5	6,3	–	79	16,0	–	25,0	25,5	90°
1	5	42	13,0-14,5	5,2	–	18,7	8,0	19,0	30,0	49	-3,0	2,5	10,0	5,5	–	120	18,0-21,5	–	34,0	34,0	90°
2	6	64	26,0	5,6	5,6	32,0	16,0	24,0	45,0	68	-1,5	5,0	13,2	6,0	12,7	162	19,5-29,5	28,5	42,0	38,0	90°
3	8	73	25,7	6,5	5,1	38,0	14,0	32,0	48,5	86	-2,0	9,0	15,0	7,0	13,0	206	22,0-31,8	31,6	45,5	50,0	90°
4	10	113	41,0	8,5	8,5	63,0	27,0	45,0	75,0	126	-4,0	24,0	20,0	8,0	20,5	287	29,0-43,0	43,0	58,0	57,0	90°
5	10	123	41,5	8,5	–	78,0	16,0	46,0	73,0	128	+1,7	25,0	25,0	12,5	–	321	41,5	–	58,0	77,0	90°

Size	Red	Yellow	Orange	Green	Blue	Black
0	93005	557038	557331	557492	557655	557991
1	93013	557039	557332	557493	557656	557992
2	93021	557040	557333	557494	557657	557993
3	93039	557041	557334	557495	557658	557994
4	93047	557042	557335	557496	557659	557995
5	93054	557043	557336	557497	557660	557996
