Description
Order no. |
Nominal bore [NW] |
Nominal flow [l/min] |
SW [mm] |
Weight [g] |
---|---|---|---|---|
430041 | 4,2 | 563 | 14 | 23 |
430066 | 5,0 | 563 | 14 | 27 |
Max. operating pressure 12 bar.
This pneumatic quick-release coupling is particularly suitable for use in the AMF zero-point clamping technology of the zero-point system.

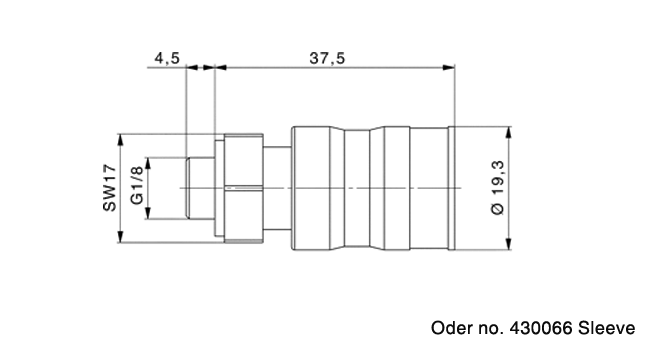

Sleeve with Order No. 430066:
Coupling valve with venting function and check valve. External thread G1/8.
Connector with Order No. 430041:
Dirt and shaving-repellent coupling connector with borehole for forced venting of the clamping station, fixture or zero-point clamping module. External thread G1/8.
Order no. |
Nominal bore [NW] |
Nominal flow [l/min] |
SW [mm] |
Weight [g] |
---|---|---|---|---|
430041 | 4,2 | 563 | 14 | 23 |
430066 | 5,0 | 563 | 14 | 27 |
