Description
| Order No. |

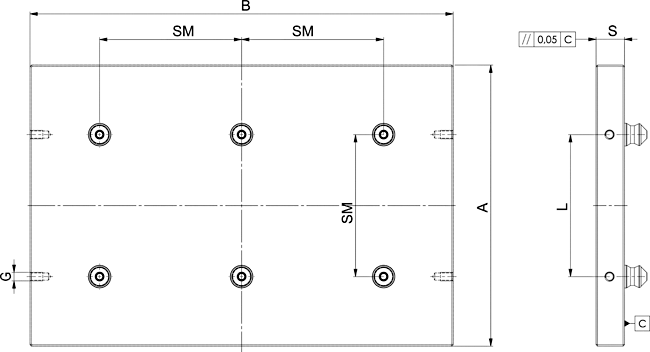

Size | A | B | G | L | S | SM | Weight [Kg] |
|---|---|---|---|---|---|---|---|---|
| 426775 | K10 | 240 | 386 | M10 | 120 | 30 | 100 | 7,5 |
| 426791 | K20 | 396 | 596 | M12 | 200 | 40 | 200 | 25,0 |
| 426817 | K40 | 546 | 866 | M12 | 320 | 45 | 320 | 56,0 |
6370P6 Fixture plate
High-strength aluminium, suitable for sextuple clamping station
Note:
On request, we can incorporate mounting holes according to your specifications in the change pallet.
On request:
Other dimensions, pitch spacings and number of equipped pull-studs.
