Hydraulic opening.
Pneumatic blow-out.
Opening operating pressure: min. 50 bar – max. 60 bar
Cover and piston hardened.
Repeatability < 0.005 mm.

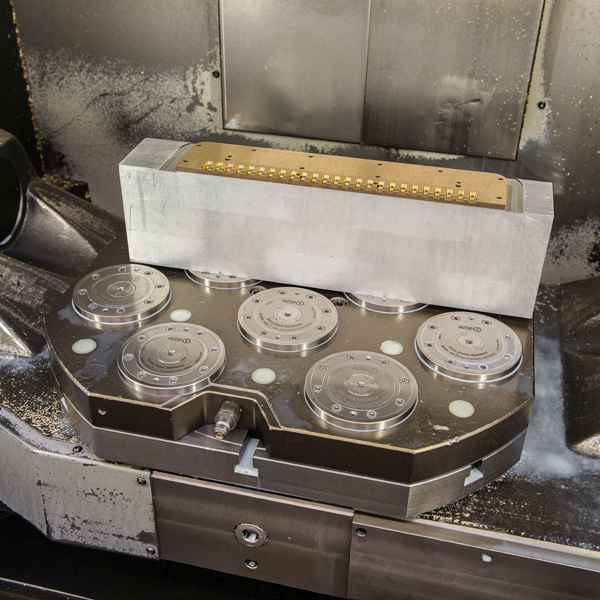

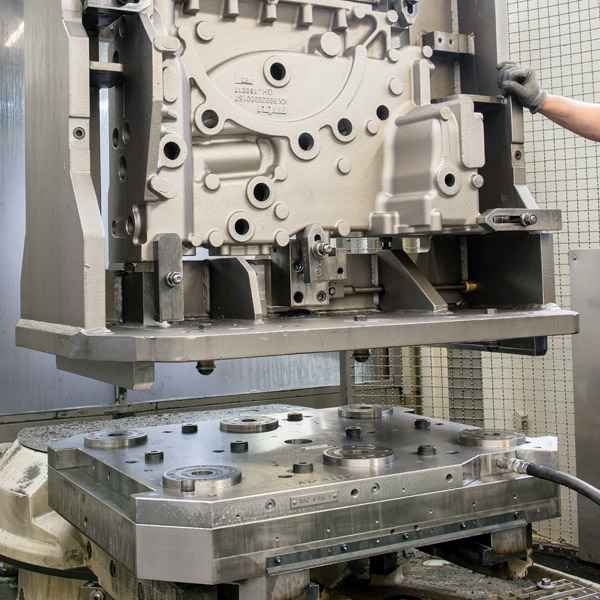

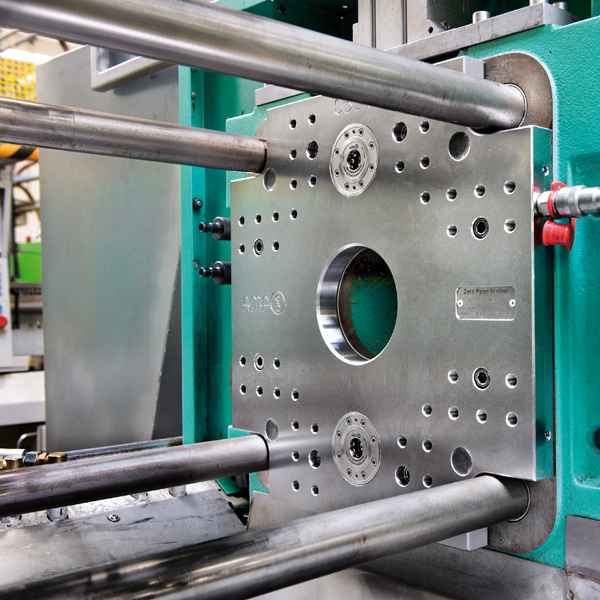

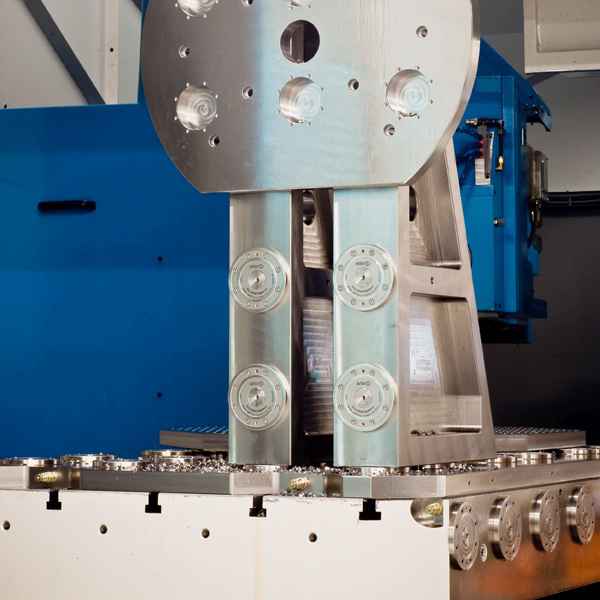

Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
The installation clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module with blow-out and support control has two connections: 1x hydr. opening (1) / 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
Installation clamping module in flange version for simplified installation, see 6151HA.
* Please observe the installation instructions.
– Installation diagrams
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Blow out | Weight [Kg] |
|---|---|---|---|---|---|
| 428680 | K10 | 10 | 25 | ● | 0,45 |
| 427971 | K20 | 20 | 55 | ● | 1,40 |
| 429845 | K40 | 40 | 105 | ● | 3,40 |
| Order No. |
Size | dia. D | dia. DN | dia. D1 | H | HA | dia. LK | M | T |
|---|---|---|---|---|---|---|---|---|---|
| 428680 | K10 | 78 | 22 | 50 | 30 | 7 | 60 | M5 | 23 |
| 427971 | K20 | 112 | 32 | 78 | 44 | 10 | 88 | M6 | 34 |
| 429845 | K40 | 148 | 40 | 102 | 57 | 15 | 118 | M8 | 42 |
