Description
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Blow out | Weight [Kg] |
|---|---|---|---|---|---|
| 428425 | K20 | 20 | 55 | ● | 1,4 |
| Order No. |

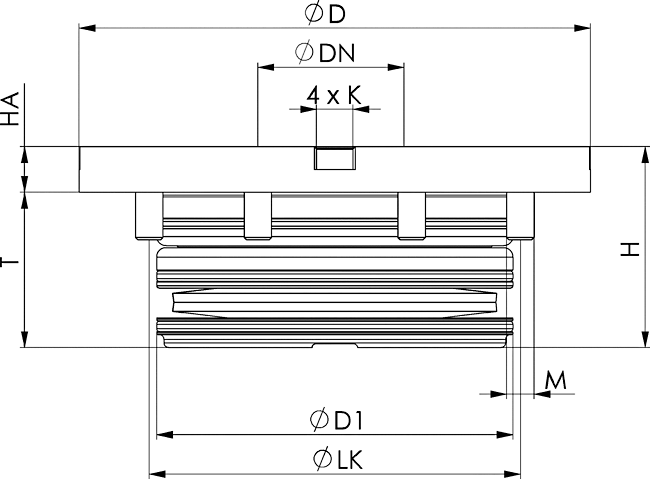

Size | dia. D | dia. DN | dia. D1 | H | HA | K F6 |
dia. LK | M | T |
|---|---|---|---|---|---|---|---|---|---|---|
| 428425 | K20 | 112 | 32 | 78 | 44 | 10 | 8 | 88 | M6 | 34 |
6370EAIHA Installation clamping module with indexing
Hydraulic opening.
Pneumatic blow-out.
Opening operating pressure: min. 50 bar – max. 60 bar
Cover and piston hardened.
Repeatability < 0.005 mm.
Application:

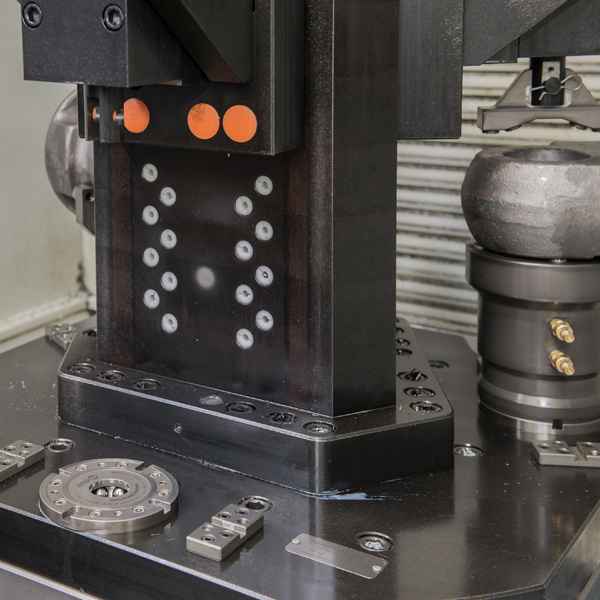

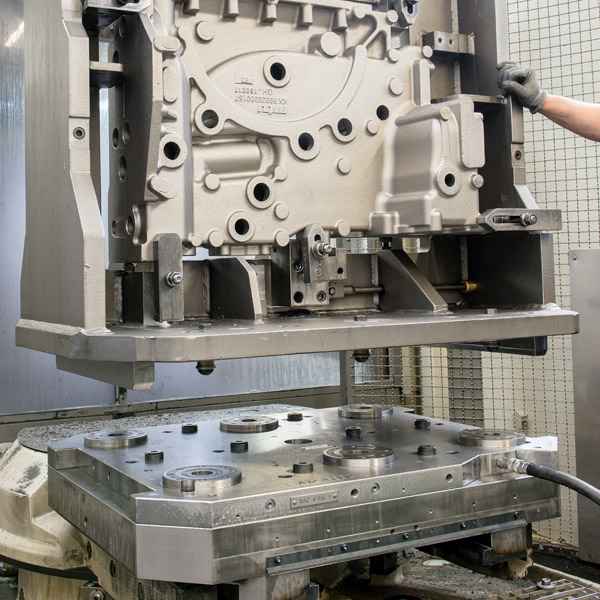

Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
The indexing function of the clamping module prevents the pallet from twisting, enabling exact positioning every 90°.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module with blow-out and support control has two connections: 1x hydr. opening (1) / 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
On request:
– Installation diagrams
