Description
| Order No. |
Size | Pull-in/locking force up to [kN] |
Holding force [kN] |
Holding force | Weight [Kg] |
|---|---|---|---|---|---|
| 428771 | K10.3 | 10 | 25 | ● | 1,4 |
| 428797 | K20.3 | 17 | 55 | ● | 2,6 |

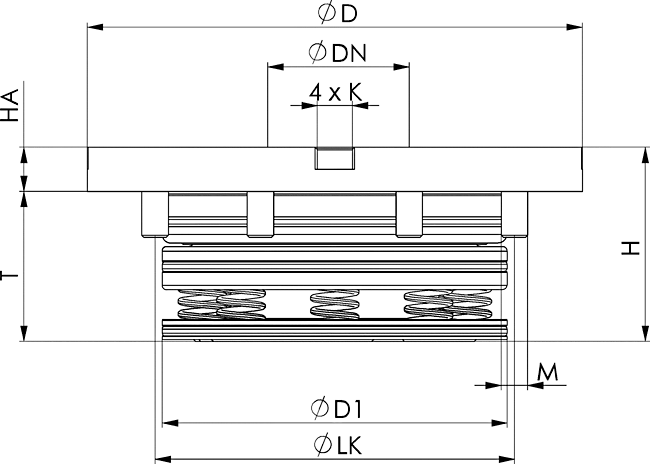

6206ILA Installation clamping module, round, with indexing
Pneumatic opening.
Pneumatic blow-out.
Opening operating pressure:
K10.3 min. 5 bar – max. 12 bar
K20.3 min. 4.5 bar – max. 12 bar
Cover and piston hardened.
Repeat accuracy < 0.005 mm.
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
The indexing function of the clamping module prevents the pallet from twisting, enabling exact positioning every 90°.
Note:
The installation clamping module has high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module with blow-out and support control has two connections:
1x opening (1), 1x pneum. blow-out and support control (3). (The pneumatic blow-out and support control can optionally be connected.)
* Please observe the installation instructions.
On request:
– Installation diagrams
