Description
| Order No. |

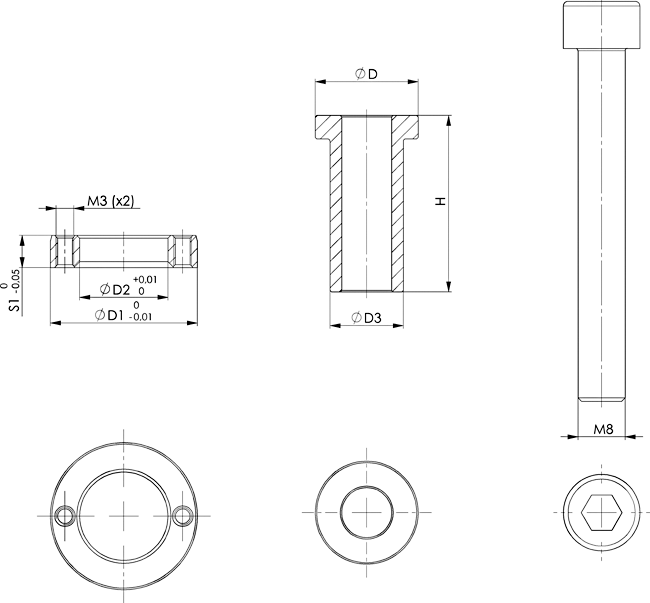

dia. D | dia. D1 | dia. D2 | dia. D3 | H | S1 | Weight [g] |
|---|---|---|---|---|---|---|---|
| 430223 | 17,5 | 25 | 15 | 12,5 | 30 | 5,5 | 62 |
6376Z-6 Adapter set for pull-stud K10
Supply scope:
– 1 Cylinder head screw
– 1 Adapter sleeve
– 1 Positioning bush
Design:
For through-bores in the clamping rail, see Item No. 6376G.
The threaded sleeve is produced from alloyed heat-treated steel, the adapter ring from case-hardened steel.
The fastening bolt conforms to strength class 10.9.
Application:

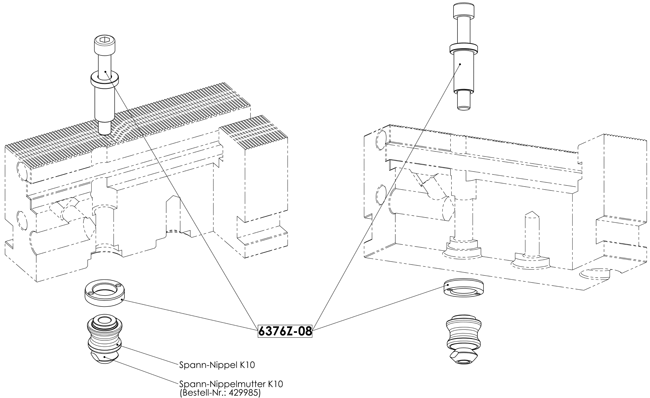

Adapter set for reducing the mounting bore from K20 to K10 pull-stud.
