Max. clamping force per clamping position 30 kN
Material: Case-hardened steel 21MnCr5, plasma-nitrided. Hardness 58 HRC.
Designed for the following mounting options on the machine table:
1. Lateral clamping rim for clamping shoe order no. 429258.
2. Through-hole in the clamping rail for socket head screw DIN ISO 4762-M12 for mounting using bolt and slot nut.
3. Prepared for clamping with the AMF Zero Point clamping system. Mounting holes at a distance of 50 or 100 mm for the clamping nipple K20.
Other mounting holes, for example clamping nipple K10 or K40, can be supplied any time on request.
Positioning steps on the clamping rail grating is possible at intervals of 2 mm.
Modularly constructed clamping system, which has its advantages in the versatile application possibilities.
Optionally designed for one or more workpieces.
For rapid clamping of workpieces for machine processing. Through use of a wide array of fixed stops and wedge clamps, this clamping system is adapted to your needs.

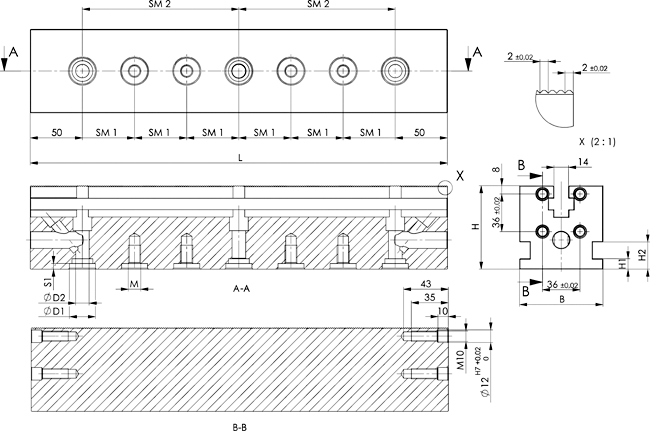

| Order No. |
Size | B | dia. D1 +0.01 | dia. D2 | H ±0.02 | H1 | H2 | L | M | S1 +0,03 | SM1 ±0,01 | SM2 ±0,01 | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 429035 | 50×300 | 50 | 25 | 13 | 80 | 10 | 26 | 300 | M12 | 5,5 | 50 | 100 | 6700 |
| 429050 | 50×400 | 50 | 25 | 13 | 80 | 10 | 26 | 400 | M12 | 5,5 | 50 | 150 | 9160 |
| 429076 | 80×400 | 80 | 25 | 13 | 80 | 10 | 26 | 400 | M12 | 5,5 | 50 | 150 | 16700 |
| 429092 | 50×500 | 50 | 25 | 13 | 80 | 10 | 26 | 500 | M12 | 5,5 | 50 | 200 | 11650 |
| 429118 | 80×500 | 80 | 25 | 13 | 80 | 10 | 26 | 500 | M12 | 5,5 | 50 | 200 | 21000 |

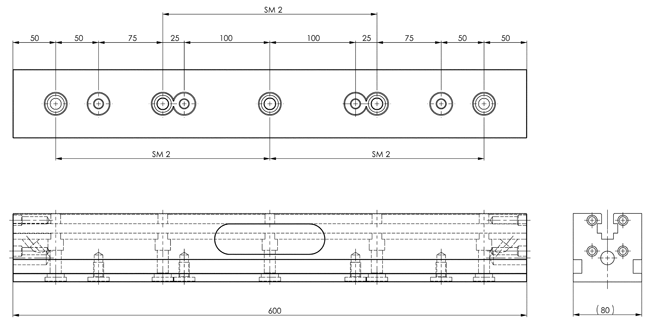

| 429134 | 80×600 | 80 | 25 | 13 | 80 | 10 | 26 | 600 | M12 | 5,5 | – | 250 | 25200 |
