Description
| Order no. |
Size | B | H | L | L1 | Mass [g] |
|---|---|---|---|---|---|---|
| 429472 | 50×100 | 50 | 80 | 100 | 80 | 2367 |
| 429498 | 80×100 | 80 | 80 | 100 | 80 | 4175 |

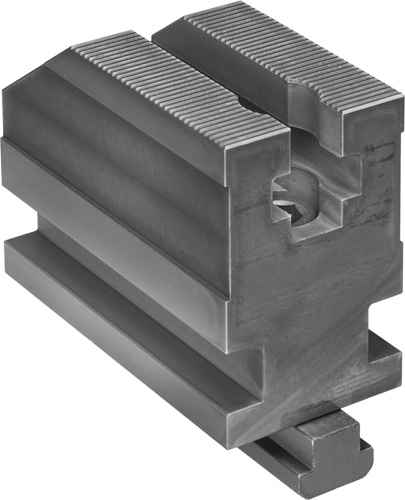

6376A 5-axis clamp
Serration top and bottom
Scope of supply:
– 5-axis clamp, 1 piece
– Fastening bolt
– T-nut
Design:
Material: case-hardened steel 21MnCr5, plasma-nitrided hardness 58 HRC.
Application:
The structure for 5-sided machining is mounted on the clamping rail no. 6376G. Through the serration, this structure grips the clamping rail positively interlocked and can be supplemented, for example, with wedge clamp no. 6376KA or no. 6376KKA and fixed stop no. 6376BA or no. 6376KA.
This structure is suitable for converting the multiple clamping system into a clamping means for 5-sided machining. This conversion can be made with just a few hand movements.
