6371 Clamping jaw, with crescent

With one clamping bolt for size 50 or two bolts for size 80, and with two mounting bolts. Hardened 60 HRC.

AMF

Description



Order
No.
Size For jaw width Clamping force
[kN]
Clamping stroke
[mm]
Weight
[g]
305011 50110-50 50 12 1,4 280
305037 80110-80 80 15 1,4 1000



Order
No.

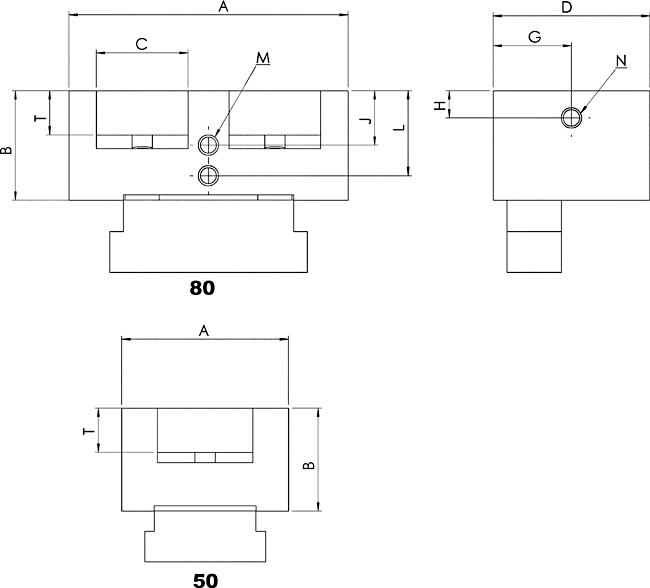

Size A B C D G H J L M N T
305011 50110-50 49 23,0 28 30,5 15,3 8 2xM6 12
305037 80110-80 82 32,2 2×28 46,0 23,0 8 16 25 4xM6 2xM6 16
