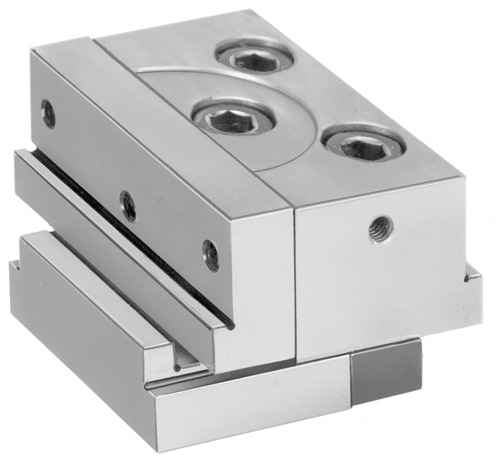

6371 Clamping jaw, standard

With one clamping bolt and two mounting bolts. Hardened 60 HRC.

Description

Order No.	Size	For jaw width	Clamping force [kN]	Clamping stroke [mm]	Weight [g]
265835	4102-50	50	12	2	373
266825	4110-80	80	15	2	1446

Order No.	Size	A	B	C	D	E	F	G	H	J	K	L	M	N	T	U	V
265835	4102-50	49	20,0	17	40	33,7	3	12,4	8	8,5	18,5	5,5	6xM5	2xM6	3,3	5	28
266825	4110-80	78	32,2	22	60	52,0	4	19,0	8	11,0	31,5	6,0	6xM6	2xM6	4,0	7	42
