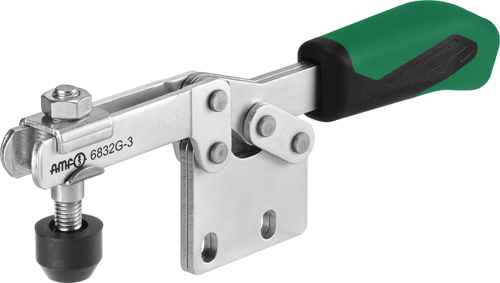

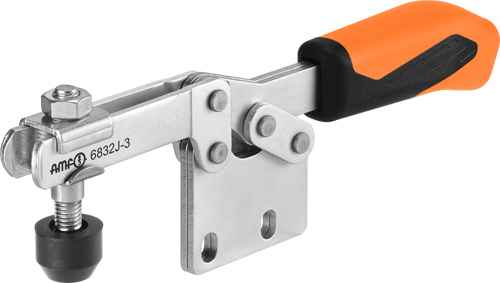

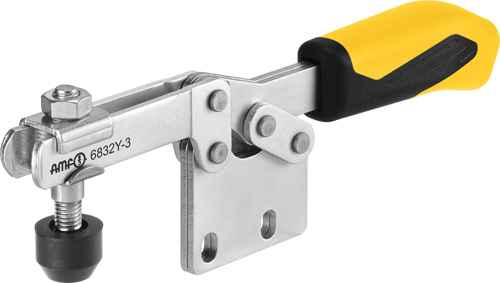

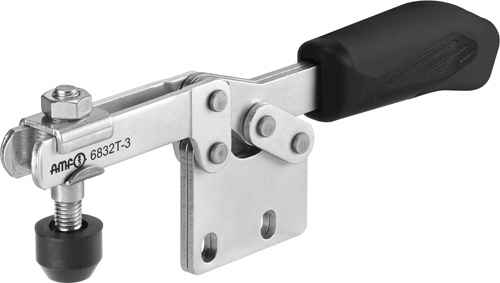

6832 Horizontal toggle clamp

with open clamping arm and vertical base.
Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 to 5, run in hardened bushings. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Lock washer for the thrust bolt at the end of the clamping arm.

Description

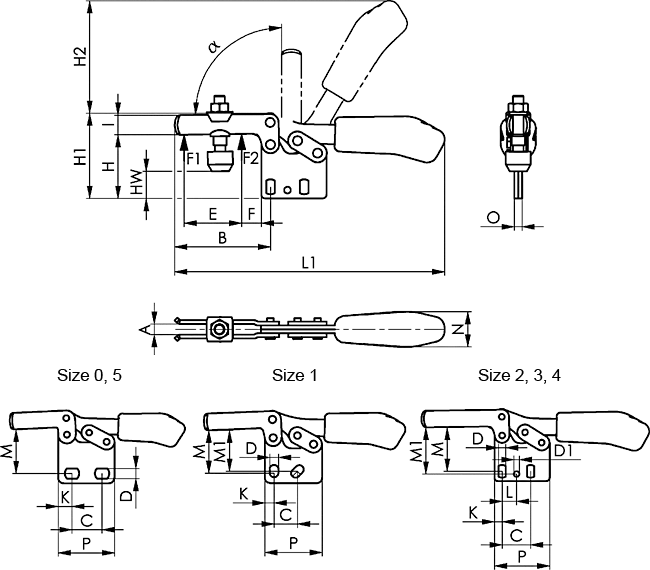

Dimensions:

Size	A	B	C	D	D1	E	F	H	H1	H2	HW min.	HW max.	I	K	L	L1
0	4	28	11,5-15,5	4,6	–	9,0	5	24,5	33,0	34	4,7	10,7	7,5	6,3	–	79
1	5	42	13,0-14,5	5,2	–	18,5	8	31,5	43,0	49	8,0	15,0	10,0	5,5	–	120
2	6	64	26,0	5,6	5,6	32,0	16	40,0	61,0	68	15,0	22,0	13,2	6,0	12,7	164
3	8	73	25,7	6,5	5,1	38,5	14	49,0	65,0	86	14,5	26,0	15,0	7,0	13,0	206
4	10	113	41,0	8,5	8,5	63,0	27	66,5	97,0	115	17,5	46,0	20,0	8,0	20,5	287
5	10	123	41,5	8,5	–	78,0	16	65,0	92,5	128	21,5	45,0	25,0	12,5	–	321

Size	Red	Yellow	Orange	Green	Blue	Black
0	93203	557097	557340	557501	557671	558010
1	93211	557098	557341	557502	557672	558011
2	93229	557099	557342	557503	557673	558012
3	93237	557100	557343	557504	557674	558013
4	93245	557101	557344	557505	557675	558014
5	93252	557102	557345	557506	557676	558015
