Aprašymas
| Užsakymo Nr. |
Modelio Nr. | Stūmimo jėga esant 100 bar [kN] |
Stūmimo jėga esant 500 bar [kN] |
Traukimo jėga esant 100 bar [kN] |
Traukimo jėga esant 500 bar [kN] |
Eiga H [mm] |
Tūris stūmimo [cm³] |
Tūris traukimo [cm³] |
Stūmoklio dia. [mm] |
Svoris [g] |
|---|---|---|---|---|---|---|---|---|---|---|
| 476895 | 6926D-8-10 | 2,0 | 10,0 | 1,2 | 6,0 | 16 | 3,2 | 1,9 | 16 | 880 |
| 328435 | 6926D-8-11 | 2,0 | 10,0 | 1,2 | 6,0 | 50 | 10,0 | 6,0 | 16 | 1420 |
| 328146 | 6926D-8-15 | 2,0 | 10,0 | 1,2 | 6,0 | 100 | 20,0 | 12,0 | 16 | 2200 |
| 328310 | 6926D-12-10 | 3,1 | 15,5 | 1,6 | 8,0 | 16 | 5,0 | 3,2 | 20 | 950 |
| 487900 | 6926D-12-11 | 3,1 | 15,5 | 1,6 | 8,0 | 50 | 15,5 | 10,0 | 20 | 1470 |
| 328161 | 6926D-12-15 | 3,1 | 15,5 | 1,6 | 8,0 | 100 | 31,0 | 20,0 | 20 | 2300 |
| 330332 | 6926D-20-10 | 5,0 | 25,0 | 2,9 | 14,5 | 20 | 9,8 | 5,8 | 25 | 1340 |
| 319491 | 6926D-20-11 | 5,0 | 25,0 | 2,9 | 14,5 | 50 | 25,0 | 14,5 | 25 | 1980 |
| 328336 | 6926D-20-15 | 5,0 | 25,0 | 2,9 | 14,5 | 100 | 50,0 | 29,0 | 25 | 3100 |
| 278903 | 6926D-32-10 | 8,0 | 40,0 | 4,9 | 24,5 | 25 | 20,0 | 12,2 | 32 | 2200 |
| 443143 | 6926D-32-11 | 8,0 | 40,0 | 4,9 | 24,5 | 50 | 40,0 | 24,5 | 32 | 2910 |
| 485458 | 6926D-32-15 | 8,0 | 40,0 | 4,9 | 24,5 | 100 | 80,0 | 49,0 | 32 | 4500 |
| 441964 | 6926D-50-10 | 12,5 | 62,5 | 7,6 | 38,0 | 25 | 31,4 | 19,1 | 40 | 2970 |
| 455279 | 6926D-50-11 | 12,5 | 62,5 | 7,6 | 38,0 | 50 | 62,5 | 38,0 | 40 | 3860 |
| 349654 | 6926D-50-15 | 12,5 | 62,5 | 7,6 | 38,0 | 100 | 125,0 | 76,0 | 40 | 5800 |
| 328351 | 6926D-78-10 | 19,6 | 98,0 | 11,6 | 58,0 | 25 | 49,0 | 29,0 | 50 | 4700 |
| 328187 | 6926D-78-11 | 19,6 | 98,0 | 11,6 | 58,0 | 50 | 98,0 | 58,0 | 50 | 5940 |
| 328203 | 6926D-78-15 | 19,6 | 98,0 | 11,6 | 58,0 | 100 | 196,0 | 116,0 | 50 | 8500 |
| 328229 | 6926D-125-10 | 31,1 | 155,5 | 18,6 | 93,0 | 30 | 93,5 | 55,8 | 63 | 8440 |
| 328245 | 6926D-125-11 | 31,1 | 155,5 | 18,6 | 93,0 | 63 | 196,0 | 117,0 | 63 | 11041 |
| 328260 | 6926D-125-15 | 31,1 | 155,5 | 18,6 | 93,0 | 100 | 311,0 | 186,0 | 63 | 14500 |

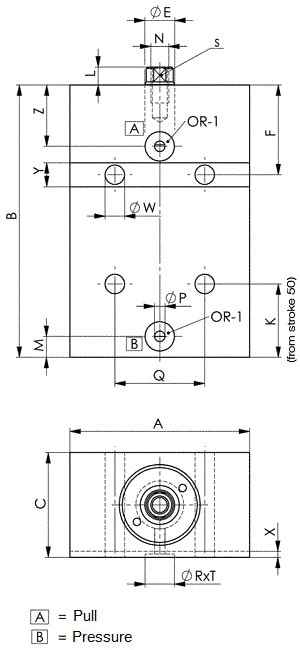

Matmenys:
| Užsakymo Nr. |
Modelio Nr. | A | B | C | dia. E | F | K | L | M | N x gylis | dia. P | Q | ØR x T | S | dia. W | X | Y | Z | OR-1 O-formos žiedo Užsakymo Nr. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 476895 | 6926D-8-10 | 60 | 56 | 35 | 10 | 30 | – | 6 | 7,0 | M6x12 | 3,5 | 30 | 9,8×1,1 | 8 | 6,5 | 2 | 8 | 20,5 | 537969 |
| 328435 | 6926D-8-11 | 60 | 91 | 35 | 10 | 30 | 24,5 | 6 | 7,0 | M6x12 | 3,5 | 30 | 9,8×1,1 | 8 | 6,5 | 2 | 8 | 20,5 | 537969 |
| 328146 | 6926D-8-15 | 60 | 144 | 35 | 10 | 30 | 24,5 | 6 | 7,0 | M6x12 | 3,5 | 30 | 9,8×1,1 | 8 | 6,5 | 2 | 8 | 20,5 | 537969 |
| 328310 | 6926D-12-10 | 60 | 61 | 35 | 14 | 30 | – | 7 | 7,5 | M8x15 | 3,5 | 40 | 9,8×1,1 | 10 | 6,5 | 2 | 8 | 20,5 | 537969 |
| 487900 | 6926D-12-11 | 60 | 95 | 35 | 14 | 30 | 26,0 | 7 | 7,5 | M8x15 | 3,5 | 40 | 9,8×1,1 | 10 | 6,5 | 2 | 8 | 20,5 | 537969 |
| 328161 | 6926D-12-15 | 60 | 148 | 35 | 14 | 30 | 26,0 | 7 | 7,5 | M8x15 | 3,5 | 40 | 9,8×1,1 | 10 | 6,5 | 2 | 8 | 20,5 | 537969 |
| 330332 | 6926D-20-10 | 65 | 64 | 45 | 16 | 33 | – | 7 | 7,5 | M10x15 | 4,0 | 50 | 9,8×1,1 | 13 | 8,5 | 2 | 10 | 21,0 | 537969 |
| 319491 | 6926D-20-11 | 65 | 94 | 45 | 16 | 33 | 26,0 | 7 | 7,5 | M10x15 | 4,0 | 50 | 9,8×1,1 | 13 | 8,5 | 2 | 10 | 21,0 | 537969 |
| 328336 | 6926D-20-15 | 65 | 144 | 45 | 16 | 33 | 26,0 | 7 | 7,5 | M10x15 | 4,0 | 50 | 9,8×1,1 | 13 | 8,5 | 2 | 10 | 21,0 | 537969 |
| 278903 | 6926D-32-10 | 75 | 75 | 55 | 20 | 38 | – | 10 | 10,0 | M12x15 | 5,0 | 55 | 9,8×1,1 | 17 | 10,5 | 3 | 12 | 25,0 | 537969 |
| 443143 | 6926D-32-11 | 75 | 100 | 55 | 20 | 38 | 27,0 | 10 | 10,0 | M12x15 | 5,0 | 55 | 9,8×1,1 | 17 | 10,5 | 3 | 12 | 25,0 | 537969 |
| 485458 | 6926D-32-15 | 75 | 150 | 55 | 20 | 38 | 27,0 | 10 | 10,0 | M12x15 | 5,0 | 55 | 9,8×1,1 | 17 | 10,5 | 3 | 12 | 25,0 | 537969 |
| 441964 | 6926D-50-10 | 85 | 79 | 63 | 25 | 40 | – | 10 | 10,0 | M16x25 | 6,0 | 63 | 9,8×1,1 | 22 | 10,5 | 3 | 12 | 27,0 | 537969 |
| 455279 | 6926D-50-11 | 85 | 104 | 63 | 25 | 40 | 27,0 | 10 | 10,0 | M16x25 | 6,0 | 63 | 9,8×1,1 | 22 | 10,5 | 3 | 12 | 27,0 | 537969 |
| 349654 | 6926D-50-15 | 85 | 154 | 63 | 25 | 40 | 27,0 | 10 | 10,0 | M16x25 | 6,0 | 63 | 9,8×1,1 | 22 | 10,5 | 3 | 12 | 27,0 | 537969 |
| 328351 | 6926D-78-10 | 100 | 90 | 75 | 32 | 44 | – | 10 | 13,0 | M20x30 | 6,0 | 76 | 10,8×1,1 | 27 | 13,0 | 5 | 16 | 29,5 | 161554 |
| 328187 | 6926D-78-11 | 100 | 115 | 75 | 32 | 44 | 30,0 | 10 | 13,0 | M20x30 | 6,0 | 76 | 10,8×1,1 | 27 | 13,0 | 5 | 16 | 29,5 | 161554 |
| 328203 | 6926D-78-15 | 100 | 165 | 75 | 32 | 44 | 30,0 | 10 | 13,0 | M20x30 | 6,0 | 76 | 10,8×1,1 | 27 | 13,0 | 5 | 16 | 29,5 | 161554 |
| 328229 | 6926D-125-10 | 125 | 102 | 95 | 40 | 50 | – | 14 | 16,0 | M27x40 | 8,0 | 95 | 13,8×1,5 | 36 | 17,0 | 5 | 20 | 32,0 | 492264 |
| 328245 | 6926D-125-11 | 125 | 135 | 95 | 40 | 50 | 41,0 | 14 | 16,0 | M27x40 | 8,0 | 95 | 13,8×1,5 | 36 | 17,0 | 5 | 20 | 32,0 | 492264 |
| 328260 | 6926D-125-15 | 125 | 172 | 95 | 40 | 50 | 41,0 | 14 | 16,0 | M27x40 | 8,0 | 95 | 13,8×1,5 | 36 | 17,0 | 5 | 20 | 32,0 | 492264 |

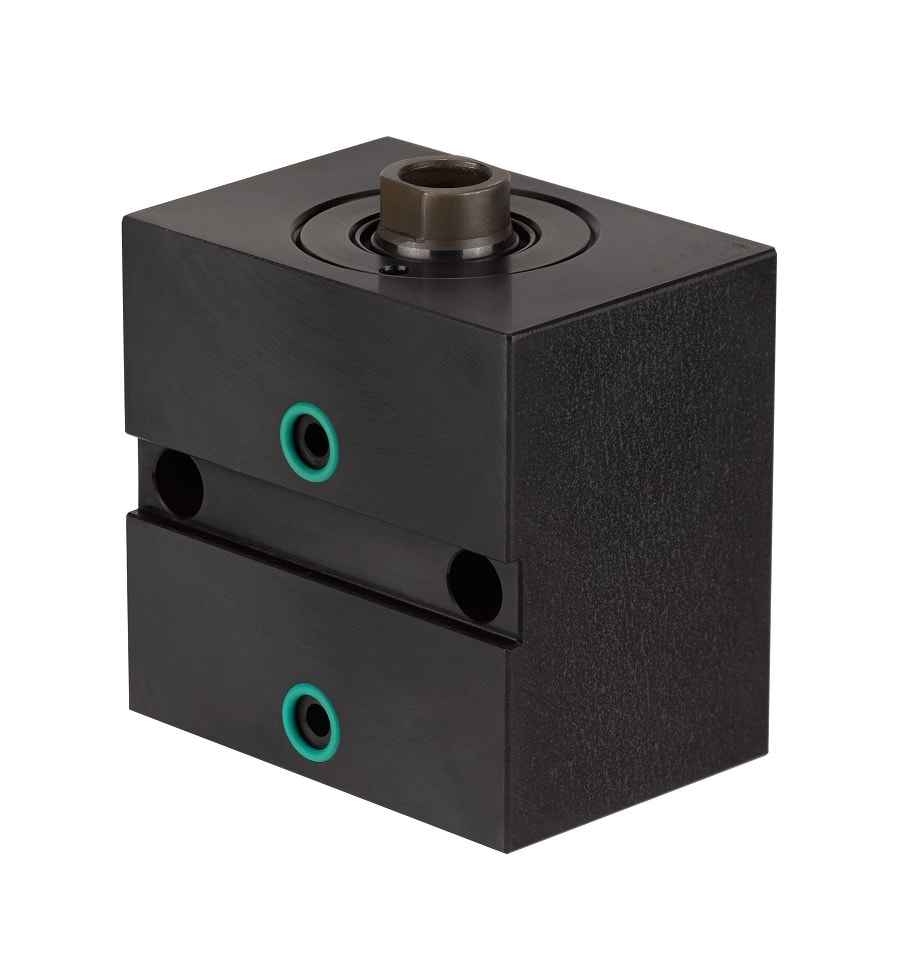

Cilindrinis vamzdis iš juodinto plieno. Stūmoklis ir švaistiklio korpusas grūdinti ir gruntuoti. Tandeminis sandarinimas ir valytuvas ant švaistiklio. Švaistiklis su vidiniu sriegiu. Alyvos padavimas per alyvos kanalą įrenginio korpuse.
Ypatybės:
Universalus tvirtinimas ant įrenginių per tvirtinimo skyles. Kiekvienas cilindras galimas su viena iš trijų skirtingų eigų.
Pastaba:
Kvadratinis cilindras yra sukurtas su grioveliais raktams. Naudojant virš 160 bar slėgį, cilindrai turi būti užblokuoti griovelyje su smeige arba būti atremti į įrenginio korpusą. Tvirtinimo varžtai turi būti stiprumo klasės 12.9. Visos neparodytos tolerancijos turi būti pagal DIN ISO 2768.
Pagal pageidavimą:
Specialūs dydžiai pagal pageidavimą.
