Aprašymas
| Užsakymo Nr. |
Modelio Nr. | Stūmimo jėga esant 100 bar [kN] |
Stūmimo jėga esant 500 bar [kN] |
Traukimo jėga esant 100 bar [kN] |
Traukimo jėga esant 500 bar [kN] |
Eiga H [mm] |
Tūris stūmimo [cm³] |
Tūris traukimo [cm³] |
Stūmoklio dia. [mm] |
Svoris [g] |
|---|---|---|---|---|---|---|---|---|---|---|
| 454793 | 6926D-8-20 | 2,0 | 10,0 | 1,2 | 6,0 | 16 | 3,2 | 1,9 | 16 | 820 |
| 328286 | 6926D-8-21 | 2,0 | 10,0 | 1,2 | 6,0 | 50 | 10,0 | 6,0 | 16 | 1330 |
| 328302 | 6926D-8-25 | 2,0 | 10,0 | 1,2 | 6,0 | 100 | 20,0 | 12,0 | 16 | 2200 |
| 298521 | 6926D-12-20 | 3,1 | 15,5 | 1,6 | 8,0 | 16 | 5,0 | 3,2 | 20 | 880 |
| 328377 | 6926D-12-21 | 3,1 | 15,5 | 1,6 | 8,0 | 50 | 15,5 | 10,0 | 20 | 1380 |
| 328328 | 6926D-12-25 | 3,1 | 15,5 | 1,6 | 8,0 | 100 | 31,0 | 20,0 | 20 | 2300 |
| 330522 | 6926D-20-20 | 5,0 | 25,0 | 2,9 | 14,5 | 20 | 9,8 | 5,8 | 25 | 1220 |
| 298513 | 6926D-20-21 | 5,0 | 25,0 | 2,9 | 14,5 | 50 | 25,0 | 14,5 | 25 | 1800 |
| 328344 | 6926D-20-25 | 5,0 | 25,0 | 2,9 | 14,5 | 100 | 50,0 | 29,0 | 25 | 3100 |
| 442319 | 6926D-32-20 | 8,0 | 40,0 | 4,9 | 24,5 | 25 | 20,0 | 12,2 | 32 | 1990 |
| 298497 | 6926D-32-21 | 8,0 | 40,0 | 4,9 | 24,5 | 50 | 40,0 | 24,5 | 32 | 2630 |
| 328369 | 6926D-32-25 | 8,0 | 40,0 | 4,9 | 24,5 | 100 | 80,0 | 49,0 | 32 | 4500 |
| 319517 | 6926D-50-20 | 12,5 | 62,5 | 7,6 | 38,0 | 25 | 31,4 | 19,1 | 40 | 2760 |
| 298307 | 6926D-50-21 | 12,5 | 62,5 | 7,6 | 38,0 | 50 | 62,5 | 38,0 | 40 | 3590 |
| 328385 | 6926D-50-25 | 12,5 | 62,5 | 7,6 | 38,0 | 100 | 125,0 | 76,0 | 40 | 5800 |
| 294884 | 6926D-78-20 | 19,6 | 98,0 | 11,6 | 58,0 | 25 | 49,0 | 29,0 | 50 | 4380 |
| 328401 | 6926D-78-21 | 19,6 | 98,0 | 11,6 | 58,0 | 50 | 98,0 | 58,0 | 50 | 5520 |
| 328427 | 6926D-78-25 | 19,6 | 98,0 | 11,6 | 58,0 | 100 | 196,0 | 116,0 | 50 | 8500 |
| 328443 | 6926D-125-20 | 31,1 | 155,5 | 18,6 | 93,0 | 30 | 93,5 | 55,8 | 63 | 7900 |
| 328468 | 6926D-125-21 | 31,1 | 155,5 | 18,6 | 93,0 | 63 | 196,0 | 117,0 | 63 | 9280 |
| 328138 | 6926D-125-25 | 31,1 | 155,5 | 18,6 | 93,0 | 100 | 311,0 | 186,0 | 63 | 14500 |

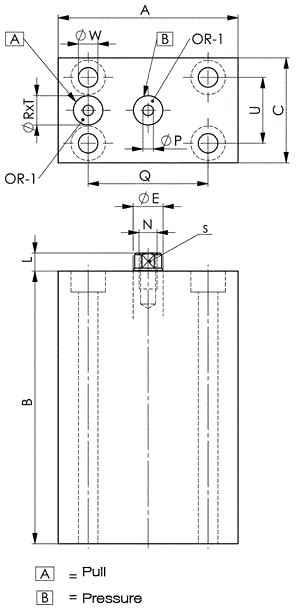

Matmenys:
| Užsakymo Nr. |
Modelio Nr. | A | B | C | dia. E | L | N x gylis | dia. P | Q | ØR x T | S | U | dia. W | OR-1 O-formos žiedo Užsakymo Nr. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 454793 | 6926D-8-20 | 60 | 56 | 35 | 10 | 6 | M6x12 | 3,5 | 40 | 9,8×1,1 | 8 | 22 | 6,5 | 537969 |
| 328286 | 6926D-8-21 | 60 | 91 | 35 | 10 | 6 | M6x12 | 3,5 | 40 | 9,8×1,1 | 8 | 22 | 6,5 | 537969 |
| 328302 | 6926D-8-25 | 60 | 144 | 35 | 10 | 6 | M6x12 | 3,5 | 40 | 9,8×1,1 | 8 | 22 | 6,5 | 537969 |
| 298521 | 6926D-12-20 | 60 | 61 | 35 | 14 | 7 | M8x15 | 3,5 | 40 | 9,8×1,1 | 10 | 22 | 6,5 | 537969 |
| 328377 | 6926D-12-21 | 60 | 95 | 35 | 14 | 7 | M8x15 | 3,5 | 40 | 9,8×1,1 | 10 | 22 | 6,5 | 537969 |
| 328328 | 6926D-12-25 | 60 | 148 | 35 | 14 | 7 | M8x15 | 3,5 | 40 | 9,8×1,1 | 10 | 22 | 6,5 | 537969 |
| 330522 | 6926D-20-20 | 65 | 64 | 45 | 16 | 7 | M10x15 | 4,0 | 50 | 9,8×1,1 | 13 | 30 | 8,5 | 537969 |
| 298513 | 6926D-20-21 | 65 | 94 | 45 | 16 | 7 | M10x15 | 4,0 | 50 | 9,8×1,1 | 13 | 30 | 8,5 | 537969 |
| 328344 | 6926D-20-25 | 65 | 144 | 45 | 16 | 7 | M10x15 | 4,0 | 50 | 9,8×1,1 | 13 | 30 | 8,5 | 537969 |
| 442319 | 6926D-32-20 | 75 | 75 | 55 | 20 | 10 | M12x15 | 5,0 | 55 | 9,8×1,1 | 17 | 35 | 10,5 | 537969 |
| 298497 | 6926D-32-21 | 75 | 100 | 55 | 20 | 10 | M12x15 | 5,0 | 55 | 9,8×1,1 | 17 | 35 | 10,5 | 537969 |
| 328369 | 6926D-32-25 | 75 | 150 | 55 | 20 | 10 | M12x15 | 5,0 | 55 | 9,8×1,1 | 17 | 35 | 10,5 | 537969 |
| 319517 | 6926D-50-20 | 85 | 79 | 63 | 25 | 10 | M16x25 | 6,0 | 63 | 9,8×1,1 | 22 | 40 | 10,5 | 537969 |
| 298307 | 6926D-50-21 | 85 | 104 | 63 | 25 | 10 | M16x25 | 6,0 | 63 | 9,8×1,1 | 22 | 40 | 10,5 | 537969 |
| 328385 | 6926D-50-25 | 85 | 154 | 63 | 25 | 10 | M16x25 | 6,0 | 63 | 9,8×1,1 | 22 | 40 | 10,5 | 537969 |
| 294884 | 6926D-78-20 | 100 | 90 | 75 | 32 | 10 | M20x30 | 6,0 | 76 | 10,8×1,1 | 27 | 45 | 13,0 | 161554 |
| 328401 | 6926D-78-21 | 100 | 115 | 75 | 32 | 10 | M20x30 | 6,0 | 76 | 10,8×1,1 | 27 | 45 | 13,0 | 161554 |
| 328427 | 6926D-78-25 | 100 | 165 | 75 | 32 | 10 | M20x30 | 6,0 | 76 | 10,8×1,1 | 27 | 45 | 13,0 | 161554 |
| 328443 | 6926D-125-20 | 125 | 102 | 95 | 40 | 14 | M27x40 | 8,0 | 95 | 13,8×1,5 | 36 | 65 | 17,0 | 492264 |
| 328468 | 6926D-125-21 | 125 | 135 | 95 | 40 | 14 | M27x40 | 8,0 | 95 | 13,8×1,5 | 36 | 65 | 17,0 | 492264 |
| 328138 | 6926D-125-25 | 125 | 172 | 95 | 40 | 14 | M27x40 | 8,0 | 95 | 13,8×1,5 | 36 | 65 | 17,0 | 492264 |

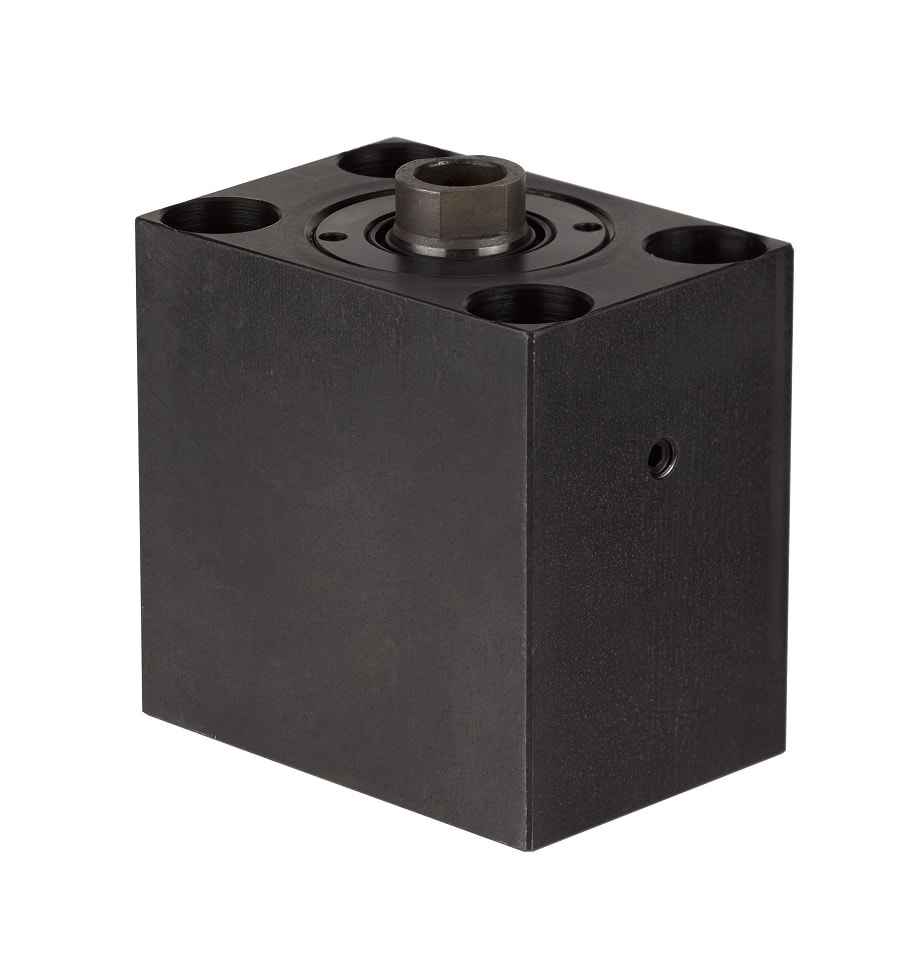

Cilindrinis vamzdis iš juodinto plieno.
Stūmoklis ir jo korpusas grūdinti ir gruntuoti. Tandeminis sandarinimas ir valytuvas ant stūmoklio. Stūmoklis su vidiniu sriegiu. Alyvos padavimas per alyvos kanalą įrenginio korpuse.
Ypatybės:
Universalus tvirtinimas prie įrenginių naudojant tvirtinimo skyles. Kiekvienas cilindras gali būti su vienu iš trijų skirtingų eigų.
Pastaba:
Tvirtinimo varžtai turi būti stiprumo klasės 12.9. Visos tolerancijos negu parodytos yra pagal DIN ISO 2768
Pagal pageidavimą:
Specialūs dydžiai pagal pageidavimą.
