Aprašymas
| Užsakymo Nr. |
Modelio Nr. | Stūmimo jėga esant 100 bar [kN] |
Stūmimo jėga esant 500 bar [kN] |
Traukimo jėga esant 100 bar [kN] |
Traukimo jėga esant 500 bar [kN] |
Eiga H [mm] |
Tūris stūmimo [cm³] |
Tūris traukimo [cm³] |
Stūmoklio dia. [mm] |
Svoris [g] |
|---|---|---|---|---|---|---|---|---|---|---|
| 62067 | 6926D-8-003 | 2,0 | 10,0 | 1,2 | 6,0 | 16 | 3,2 | 1,9 | 16 | 880 |
| 62091 | 6926D-8-004 | 2,0 | 10,0 | 1,2 | 6,0 | 50 | 10,0 | 6,0 | 16 | 1420 |
| 295618 | 6926D-8-400 | 2,0 | 10,0 | 1,2 | 6,0 | 100 | 20,0 | 12,0 | 16 | 2200 |
| 62158 | 6926D-12-003 | 3,1 | 15,5 | 1,6 | 8,0 | 16 | 5,0 | 3,2 | 20 | 950 |
| 62166 | 6926D-12-004 | 3,1 | 15,5 | 1,6 | 8,0 | 50 | 15,5 | 10,0 | 20 | 1470 |
| 295626 | 6926D-12-400 | 3,1 | 15,5 | 1,6 | 8,0 | 100 | 31,0 | 20,0 | 20 | 2300 |
| 62190 | 6926D-20-003 | 5,0 | 25,0 | 2,9 | 14,5 | 20 | 9,8 | 5,8 | 25 | 1340 |
| 62208 | 6926D-20-004 | 5,0 | 25,0 | 2,9 | 14,5 | 50 | 25,0 | 14,5 | 25 | 1980 |
| 295634 | 6926D-20-400 | 5,0 | 25,0 | 2,9 | 14,5 | 100 | 50,0 | 29,0 | 25 | 3100 |
| 62372 | 6926D-32-003 | 8,0 | 40,0 | 4,9 | 24,5 | 25 | 20,0 | 12,2 | 32 | 2200 |
| 62380 | 6926D-32-004 | 8,0 | 40,0 | 4,9 | 24,5 | 50 | 40,0 | 24,5 | 32 | 2910 |
| 295642 | 6926D-32-400 | 8,0 | 40,0 | 4,9 | 24,5 | 100 | 80,0 | 49,0 | 32 | 4500 |
| 62455 | 6926D-50-003 | 12,5 | 62,5 | 7,6 | 38,0 | 25 | 31,4 | 19,1 | 40 | 2970 |
| 62463 | 6926D-50-004 | 12,5 | 62,5 | 7,6 | 38,0 | 50 | 62,5 | 38,0 | 40 | 3860 |
| 295246 | 6926D-50-400 | 12,5 | 62,5 | 7,6 | 38,0 | 100 | 125,0 | 76,0 | 40 | 5800 |
| 62570 | 6926D-78-003 | 19,6 | 98,0 | 11,6 | 58,0 | 25 | 49,0 | 29,0 | 50 | 4700 |
| 62588 | 6926D-78-004 | 19,6 | 98,0 | 11,6 | 58,0 | 50 | 98,0 | 58,0 | 50 | 5940 |
| 295667 | 6926D-78-400 | 19,6 | 98,0 | 11,6 | 58,0 | 100 | 196,0 | 116,0 | 50 | 8500 |
| 62653 | 6926D-125-003 | 31,1 | 155,5 | 18,6 | 93,0 | 30 | 93,5 | 55,8 | 63 | 8440 |
| 62786 | 6926D-125-004 | 31,1 | 155,5 | 18,6 | 93,0 | 50 | 155,5 | 93,0 | 63 | 10010 |
| 295675 | 6926D-125-400 | 31,1 | 155,0 | 18,6 | 93,0 | 100 | 311,0 | 186,0 | 63 | 14500 |
| 295683 | 6926D-200-003 | 50,3 | 251,5 | 30,6 | 153,0 | 32 | 160,0 | 98,0 | 80 | 15000 |
| 295691 | 6926D-200-004 | 50,3 | 251,5 | 30,6 | 153,0 | 80 | 402,0 | 245,0 | 80 | 21000 |
| 295709 | 6926D-200-400 | 50,3 | 251,5 | 30,6 | 153,0 | 100 | 503,0 | 305,0 | 80 | 24000 |

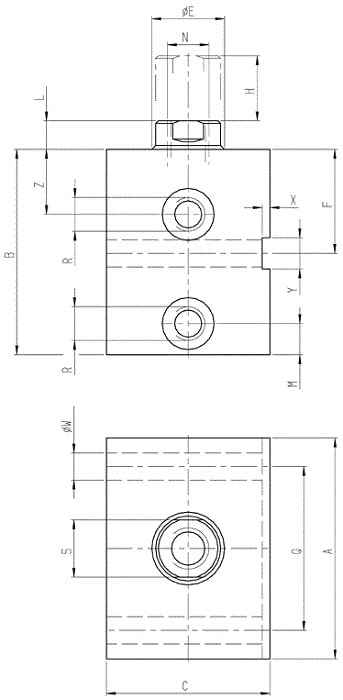

Matmenys:
| Užsakymo Nr. |
Modelio Nr. | A | B | C | dia. E | F | L | M | N x gylis | Q | R | S | dia. W | X | Y | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 62067 | 6926D-8-003 | 60 | 56 | 35 | 10 | 30 | 6 | 11 | M6x12 | 40 | G1/4 | 8 | 6,5 | 2 | 8 | 16,5 |
| 62091 | 6926D-8-004 | 60 | 91 | 35 | 10 | 30 | 6 | 11 | M6x12 | 40 | G1/4 | 8 | 6,5 | 2 | 8 | 16,5 |
| 295618 | 6926D-8-400 | 60 | 144 | 35 | 10 | 30 | 6 | 11 | M6x12 | 40 | G1/4 | 8 | 6,5 | 2 | 8 | 16,5 |
| 62158 | 6926D-12-003 | 60 | 61 | 35 | 14 | 30 | 7 | 11 | M8x15 | 40 | G1/4 | 10 | 6,5 | 2 | 8 | 17,0 |
| 62166 | 6926D-12-004 | 60 | 95 | 35 | 14 | 30 | 7 | 11 | M8x15 | 40 | G1/4 | 10 | 6,5 | 2 | 8 | 17,0 |
| 295626 | 6926D-12-400 | 60 | 148 | 35 | 14 | 30 | 7 | 11 | M8x15 | 40 | G1/4 | 10 | 6,5 | 2 | 8 | 17,0 |
| 62190 | 6926D-20-003 | 65 | 64 | 45 | 16 | 33 | 7 | 11 | M10x15 | 50 | G1/4 | 13 | 8,5 | 2 | 10 | 18,0 |
| 62208 | 6926D-20-004 | 65 | 94 | 45 | 16 | 33 | 7 | 11 | M10x15 | 50 | G1/4 | 13 | 8,5 | 2 | 10 | 18,0 |
| 295634 | 6926D-20-400 | 65 | 144 | 45 | 16 | 33 | 7 | 11 | M10x15 | 50 | G1/4 | 13 | 8,5 | 2 | 10 | 18,0 |
| 62372 | 6926D-32-003 | 75 | 75 | 55 | 20 | 38 | 10 | 11 | M12x15 | 55 | G1/4 | 17 | 10,5 | 3 | 12 | 22,0 |
| 62380 | 6926D-32-004 | 75 | 100 | 55 | 20 | 38 | 10 | 11 | M12x15 | 55 | G1/4 | 17 | 10,5 | 3 | 12 | 22,0 |
| 295642 | 6926D-32-400 | 75 | 150 | 55 | 20 | 38 | 10 | 11 | M12x15 | 55 | G1/4 | 17 | 10,5 | 3 | 12 | 22,0 |
| 62455 | 6926D-50-003 | 85 | 79 | 63 | 25 | 40 | 10 | 11 | M16x25 | 63 | G1/4 | 22 | 10,5 | 3 | 12 | 24,0 |
| 62463 | 6926D-50-004 | 85 | 104 | 63 | 25 | 40 | 10 | 11 | M16x25 | 63 | G1/4 | 22 | 10,5 | 3 | 12 | 24,0 |
| 295246 | 6926D-50-400 | 85 | 154 | 63 | 25 | 40 | 10 | 11 | M16x25 | 63 | G1/4 | 22 | 10,5 | 3 | 12 | 24,0 |
| 62570 | 6926D-78-003 | 100 | 90 | 75 | 32 | 44 | 10 | 13 | M20x30 | 76 | G1/4 | 27 | 13,0 | 5 | 16 | 27,0 |
| 62588 | 6926D-78-004 | 100 | 115 | 75 | 32 | 44 | 10 | 13 | M20x30 | 76 | G1/4 | 27 | 13,0 | 5 | 16 | 27,0 |
| 295667 | 6926D-78-400 | 100 | 165 | 75 | 32 | 44 | 10 | 13 | M20x30 | 76 | G1/4 | 27 | 13,0 | 5 | 16 | 27,0 |
| 62653 | 6926D-125-003 | 125 | 102 | 95 | 40 | 50 | 14 | 17 | M27x40 | 95 | G1/4 | 36 | 17,0 | 5 | 20 | 26,0 |
| 62786 | 6926D-125-004 | 125 | 122 | 95 | 40 | 50 | 14 | 17 | M27x40 | 95 | G1/4 | 36 | 17,0 | 5 | 20 | 26,0 |
| 295675 | 6926D-125-400 | 125 | 172 | 95 | 40 | 50 | 14 | 17 | M27x40 | 95 | G1/2 | 36 | 17,0 | 5 | 20 | 26,0 |
| 295683 | 6926D-200-003 | 160 | 117 | 120 | 50 | 60 | 14 | 21 | M30x40 | 120 | G1/2 | 46 | 21,0 | 7 | 24 | 34,0 |
| 295691 | 6926D-200-004 | 160 | 165 | 120 | 50 | 60 | 14 | 21 | M30x40 | 120 | G1/2 | 46 | 21,0 | 7 | 24 | 34,0 |
| 295709 | 6926D-200-400 | 160 | 185 | 120 | 50 | 60 | 14 | 21 | M30x40 | 120 | G1/2 | 46 | 21,0 | 7 | 24 | 34,0 |

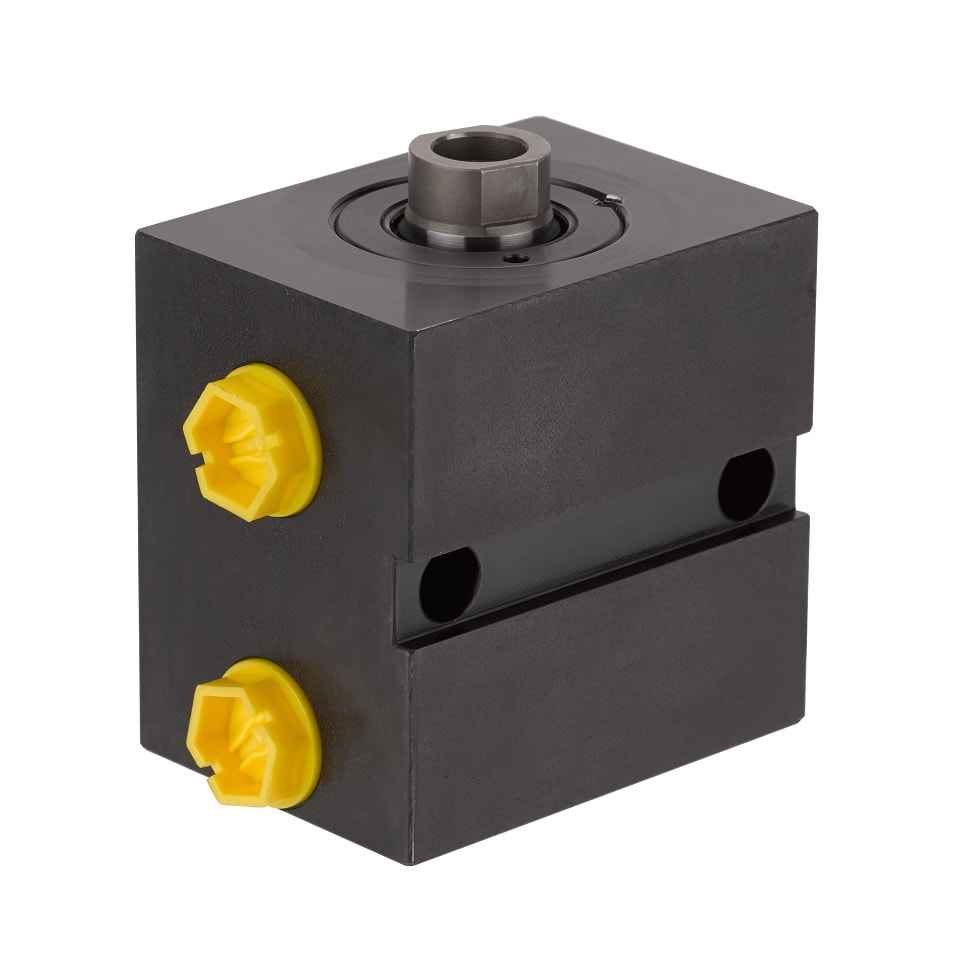

Cilindrinis vamzdis iš plieno, grūdinto ir juodinto. Stūmoklis ir švaistiklio korpusas grūdinti ir gruntuoti. Tandeminis sandarinimas ir valytuvas ant stūmoklio strypo. Švaistiklis su vidiniu sriegiu. Alyvos padavimas per srieginę jungtį.
Ypatybės:
Universalus tvirtinimas ant įrenginių per tvirtinimo skyles. Kiekvienas cilindras gali būti su 1 iš 3 skirtingų eigų.
Pastabos:
Kvadratinis cilindras yra sukurtas su grioveliais raktams. Naudojant virš 160 bar slėgį, cilindrai turi būti sustabdyti griovelyje naudojant smeigę arba atremti į įrenginio korpusą. Tvirtinimo varžtai turi būti stiprumo klasės 12.9. Visos tolerancijos negu yra pavaizduotos yra pagal DIN ISO 2768.
Pagal pageidavimą:
Specialūs dydžiai pagal pageidavimą.
